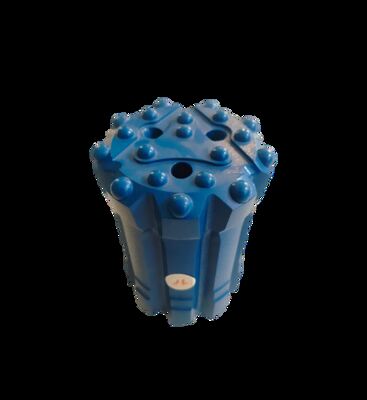

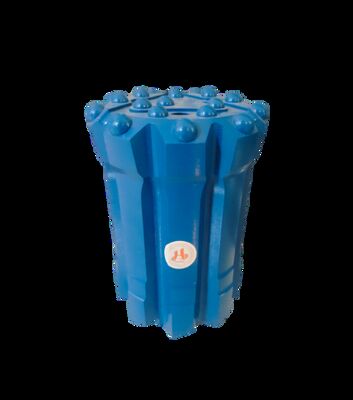

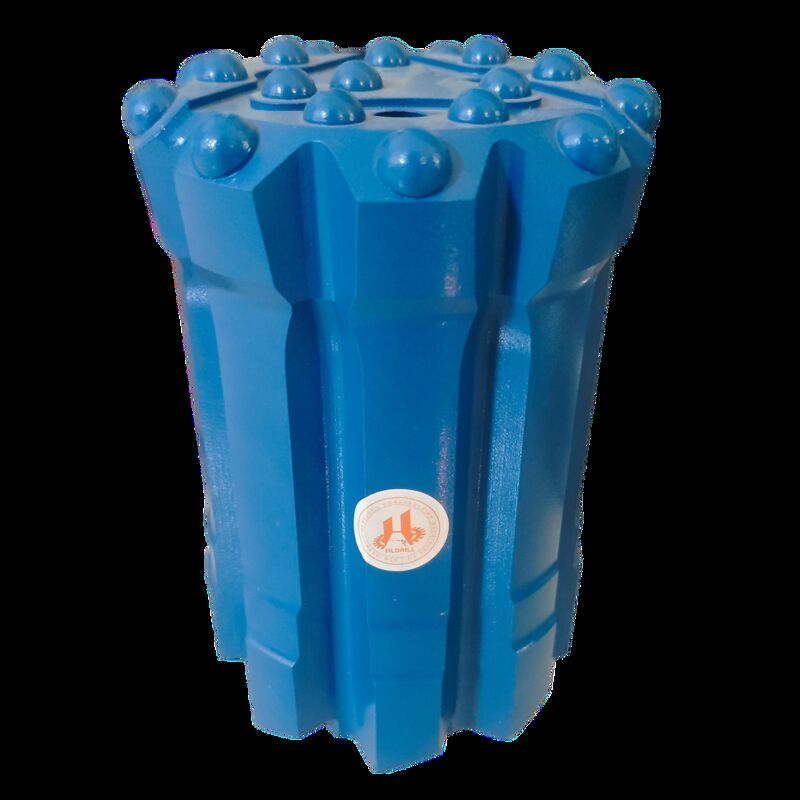

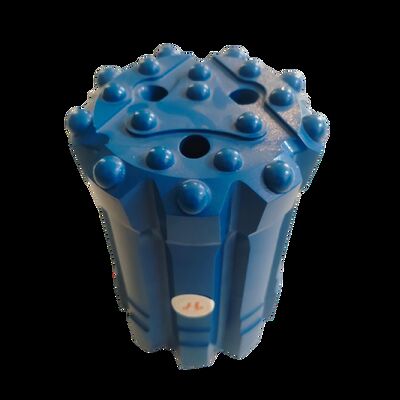

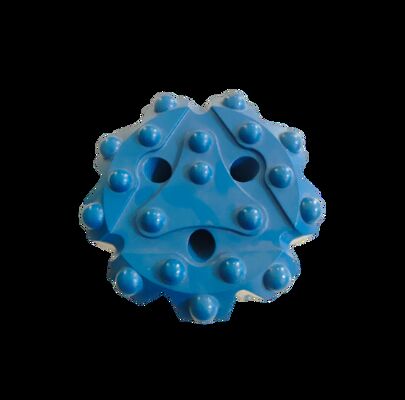

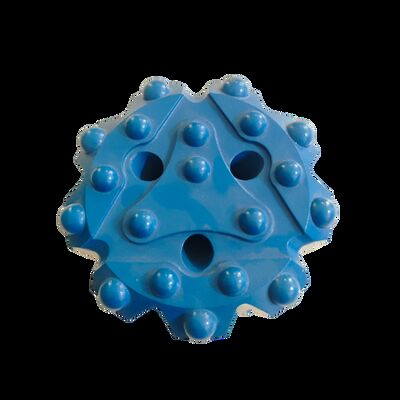

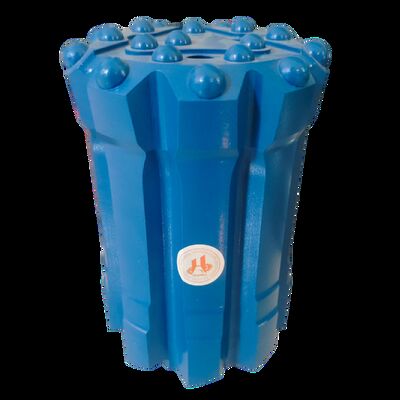

Gt60 Threaded Button Bit Heavy Duty Top Hammer Drill Bits 140mm Diameter

Name: Gt60 Threaded Button Bit Heavy Duty Top Hammer Drill Bits 140mm Diameter
Brand: Yanggu Henglong Construction Machinery Co., Ltd.
SKU: Q14-140-GT45
Availability: InStock

Brand Name:	HLDRILL
Model Number:	Q14-140-GT45
MOQ:	10PCS
Price:	Please contact us
Payment Terms:	T/T
Supply Ability:	Over 3000 per month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO 9001 Certified

Name:

Top Hammer Drill Bits

Face:

Flat / Drop Center / New Drop Center

Material:

Tungsten Carbide

Weight:

16.2 Kg

Wearresistance:

High

Diameter:

140mm

Threadtype:

R、T、S、SR、ST、GT

Usageenvironment:

Mining, Construction, Quarrying

Compatibility:

Compatible With Most Drilling Rigs

Application:

Drilling

Packaging Details:

Wooden box / Cardboard box

Highlight:

GT60 Threaded Button Bit

Heavy Duty Top Hammer Drill Bits

Top Hammer Drill Bits 140mm

Product Description

GT60 Threaded Button Bit Heavy Duty Top Hammer Drill Bit for Hard Rock Drilling

Product Specifications

Product Name	Q14-140-GT45 Retrac Button Bit
Code Number	1531-140GT60-1014 / 916-45-31
Thread Type	GT60
Diameter	140mm
Carbide Tungsten	10×14mm, 9×16mm
Skirt Design	Retract
Weight	16.2 kg
Carbide Design	Spherical Buttons
Face Design	Flat
Material	Alloy Steel Bar 45CrNiMoV and Tungsten Carbide Tips YK05

Product Overview

The GT60 Threaded Button Bit is a heavy duty drill bit from the Sandv system, engineered specifically for top hammer drilling applications. Designed for compatibility with large diameter, high power top hammer drilling equipment, this robust tool excels in demanding operations including deep hole drilling in mines and tunnel excavation.

Key Features

Extended Service Life: High hardness tungsten steel ball teeth with surface hardening provide superior wear and fatigue resistance, delivering 20%-40% longer lifespan compared to standard T threaded drill bits
Optimized Hard Rock Performance: Flat face design ensures effective drilling in hard rock formations
Enhanced Deep Hole Operation: Retrac skirt design facilitates smooth entry and exit in deep holes while preventing drill bit jamming
Superior Cutting Removal: Large-diameter central flushing hole enables high pressure airflow/water flow to quickly remove rock cuttings, reducing borehole blockage and drill bit wear
Maximum Efficiency: High energy transfer efficiency and improved drilling performance in challenging conditions
