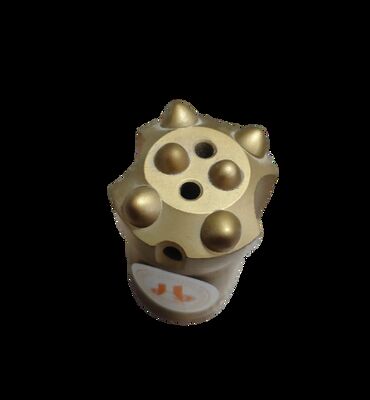

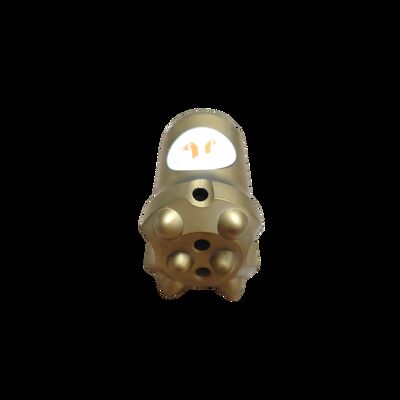

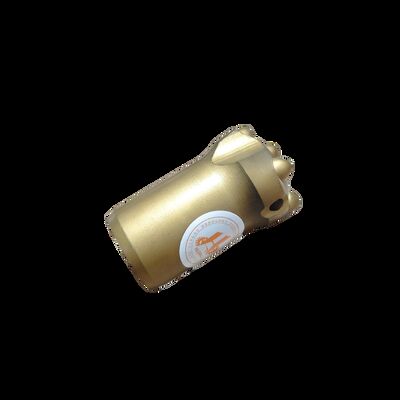

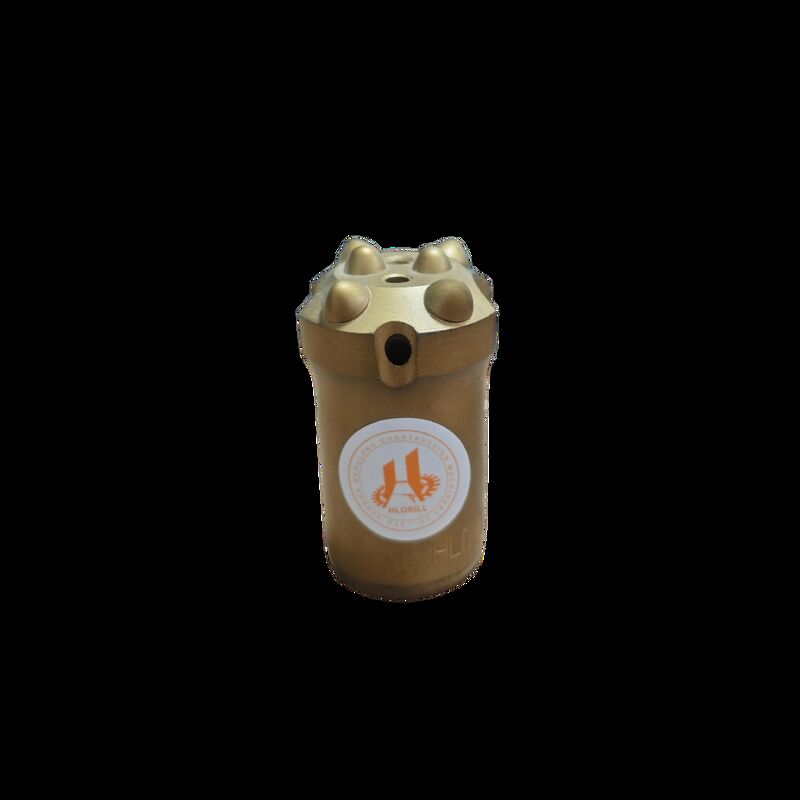

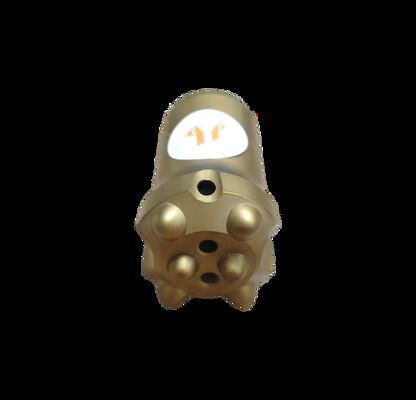

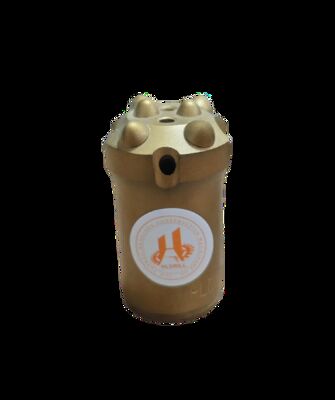

6 Tooth Button Rock Drill Bit High Impact Low Downtime 43mm Diameter

6 Tooth Button Rock Drill Bit High Impact Low Downtime 43mm Diameter

6 Tooth Button Rock Drill Bit High Impact Low Downtime 43mm Diameter

Brand Name: HLDRILL
MOQ: 10PCS
Price: Please contact us
Payment Terms: T/T
Supply Ability: 3000 PCS Per month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
ISO 9001 Certified
Name:
Button Rock Drill Bit
Material:
Tungsten Carbide
Threadtype:
R / T / S / SR / ST
Wearresistance:
High
Diameter:
43mm
Usageenvironment:
Mining, Construction, Quarrying
Compatibility:
Compatible With Most Drilling Rigs
Weight:
0.5 Kg
Face:
Flat / Drop Center / New Drop Center
Application:
Drilling
Packaging Details:
Wooden Box
Highlight:

6 Tooth Button Rock Drill Bit

,

Button Rock Drill Bit High Impact

,

Button Rock Drill Bit 43mm

Product Description
6-Tooth Rock Drill Bit with Low Downtime & High Impact
Product Specifications
Diameter 43mm
Body Length 69mm
Tapered Degree 11°
Carbide Size 2 × 8mm, 4 × 10mm
Carbide Brand and Grade ZCC/YK05
Steel Grade 45CrNiMoVA, 42CrMo
Hardness HRC 40-45
Weight 0.5 kg
Product Overview
The 6-tooth, 11-degree, 43mm×69mm button bit is a high-efficiency rock drilling tool engineered for 11° tapered connections. Featuring a 43mm drilling diameter and 69mm length, this bit's 6 carbide button teeth are strategically arranged to optimize both penetration efficiency and impact resistance. Compatible with H22 11° tapered drill rods, it is primarily designed for medium-hard to hard rock drilling in deep hole applications, including mining tunnels, quarry blasting operations, and tunnel pre-support drilling.
6 Tooth Button Rock Drill Bit High Impact Low Downtime 43mm Diameter 06 Tooth Button Rock Drill Bit High Impact Low Downtime 43mm Diameter 1
Key Performance Features
  • Low Downtime Operation
    The optimized 6-tooth design concentrates and evenly distributes cutting forces, effectively reducing drill bit jamming and hole blockage. Suitable for continuous operation in medium-hard rock formations, a single drill bit can reliably complete 80-100 standard anchor bolt holes, significantly reducing bit change frequency and supporting efficient project progress.
  • High Impact Resistance
    Precision-forged from 42CrMo alloy steel with double heat treatment, achieving HRC 40-45 hardness and excellent fatigue resistance. Carbide ball teeth manufactured from YK05 material are securely fixed using hot-setting technology, enabling them to withstand frequent impact loads and delivering service life far exceeding ordinary drill bits of similar specifications.
Tags:

Tungsten Carbide Button Bit

Tapered Button Bit

Button Bit For Rock Drilling
