7 Tooth 11 Degree Taper Button Bit 42mm Diameter For Rock Drilling

7 Tooth 11 Degree Taper Button Bit 42mm Diameter For Rock Drilling

7 Tooth 11 Degree Taper Button Bit 42mm Diameter For Rock Drilling

Brand Name: HLDRILL
MOQ: 10PCS
Price: Please contact us
Payment Terms: T/T
Supply Ability: 3000 PCS Per month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
ISO 9001 Certified
Face:
Flat、drop Center 、New Drop Center
Material:
Tungsten Carbide
Threadtype:
R、T、S、SR、ST
Weight:
0.37 Kg
Wearresistance:
High
Diameter:
42 Mm
Usageenvironment:
Mining, Construction, Quarrying
Compatibility:
Compatible With Most Drilling Rigs
Application:
Drilling
Packaging Details:
Wooden Box
Highlight:

11 Degree Taper Button Bit

,

7 Tooth Taper Button Bit

,

Taper Button Bit 42mm

Product Description

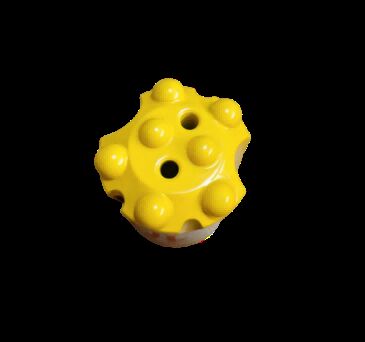

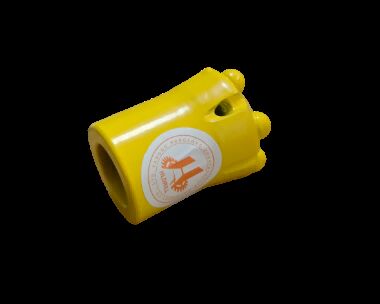

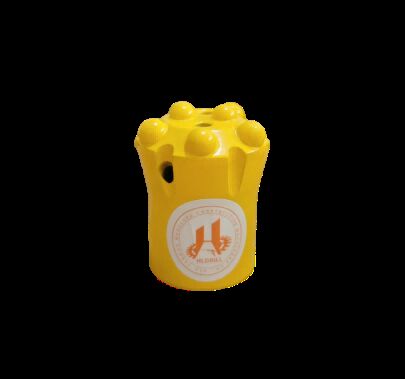

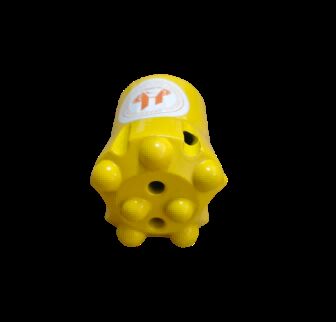

7-Tooth Configuration 11° Taper Button Bit with 42mm Diameter for Rock Drilling
Diameter 42 mm
Body Length 51 mm
Tapered Degree 11°
Carbide Size 2×8mm, 5×9mm
Carbide Brand and Grade ZCC / YK05 / YG9C / YG10C
Steel Grade 45CrNiMoVA
Weight 0.37 kg

This 7-tooth ball-type rock drill bit features an 11° taper connection with a 42mm drilling diameter and 51mm length. Engineered for exceptional performance in demanding rock drilling applications.

7 Tooth 11 Degree Taper Button Bit 42mm Diameter For Rock Drilling 07 Tooth 11 Degree Taper Button Bit 42mm Diameter For Rock Drilling 1
Key Features & Applications
  • Designed for stable cutting and high impact resistance in hard rock formations
  • Ideal for mining tunnels, tunnel excavation, and deep hole drilling in quarries
  • Compatible with hydraulic and pneumatic rock drills
  • Works with H22 and other 11° taper drill rods
