9 Tooth 65mm T38 Thread Button Bit For Heavy Duty Rock Drilling / Mining

9 Tooth 65mm T38 Thread Button Bit For Heavy Duty Rock Drilling / Mining

9 Tooth 65mm T38 Thread Button Bit For Heavy Duty Rock Drilling / Mining

Brand Name: HLDRILL
MOQ: 10PCS
Price: Please contact us
Payment Terms: T/T
Supply Ability: 3000 PCS Per month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
ISO 9001 Certified
Face:
Flat、drop Center 、New Drop Center
Material:
Tungsten Carbide
Threadtype:
R、T、S、SR、ST
Weight:
1.66kg
Wearresistance:
High
Diameterrange:
65mm
Usageenvironment:
Mining, Construction, Quarrying
Compatibility:
Compatible With Most Drilling Rigs
Application:
Drilling
Name:
Button Bit
Packaging Details:
Wooden Boxes, Cardboard Boxes
Highlight:

65mm Thread Button Bit

,

T38 Thread Button Bit

,

9 Tooth Mining Button Bit

Product Description
9-tooth 65mm T38 Thread Button Bit for Heavy-Duty Rock Drilling and Mining
Diameter 65mm
Thread Type T38
Length 120mm
Carbide Dimension 18mm × 8mm × 10mm
Weight 1.66kg
Water Holes 3 on front, 1 on side
Skirt Design Standard
Carbide Brand & Grade YK15.6, YK20, YG8C, YG9C, YG10C, YG11C
Steel Grade 42CrMo, 45CrNiMoVA
Product Overview
This heavy-duty 9-tooth, 65mm T38 threaded button bit is engineered for core drilling applications in demanding industrial environments. Designed specifically for medium to large diameter blasting operations, tunnel excavation, and mining applications, it delivers exceptional performance and durability.

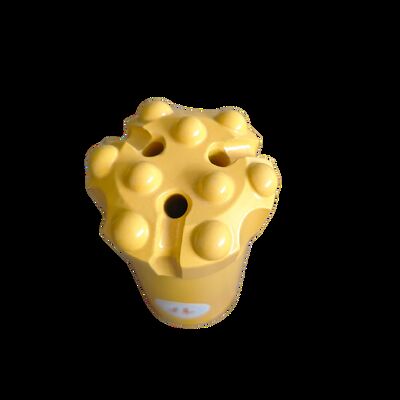

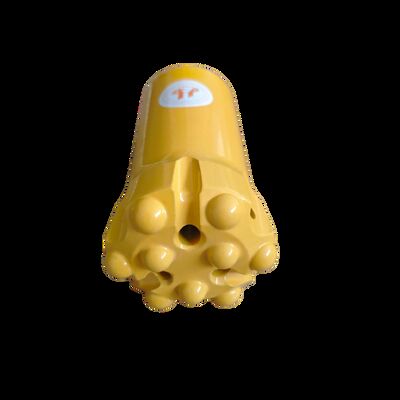

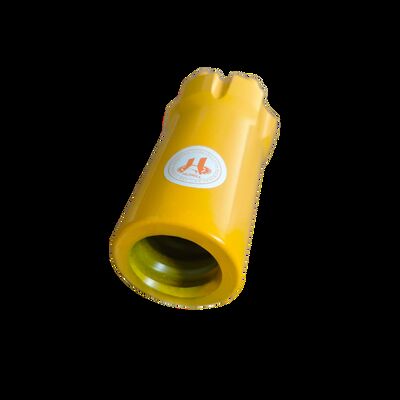

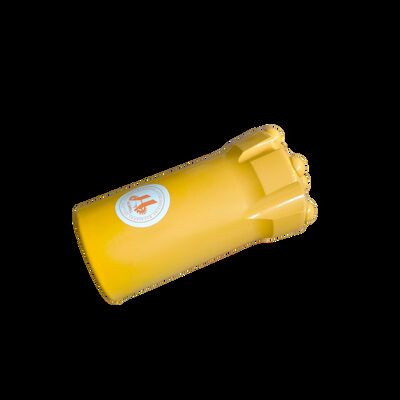

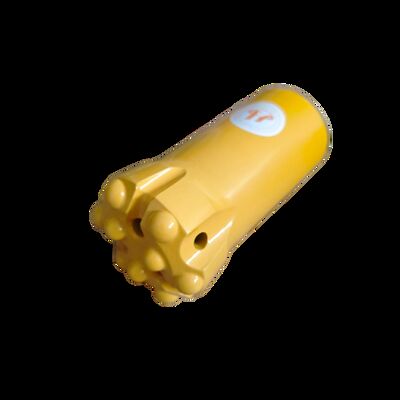

9 Tooth 65mm T38 Thread Button Bit For Heavy Duty Rock Drilling / Mining 09 Tooth 65mm T38 Thread Button Bit For Heavy Duty Rock Drilling / Mining 1

Key Features
  • 9 spherical tungsten carbide ball teeth for efficient rock breaking and penetration
  • 65mm drilling diameter capable of creating solid, precise holes
  • T38 standard thread compatibility with top-level drilling equipment for high torque transmission
  • Optimized water hole configuration (3 front, 1 side) for effective dust suppression and cooling
  • Premium steel construction (42CrMo, 45CrNiMoVA) for superior strength and longevity
  • Multiple carbide grade options for varying rock conditions and application requirements
