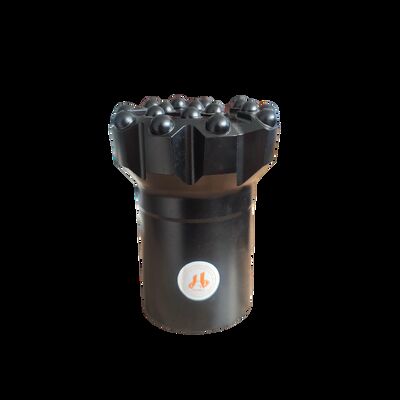

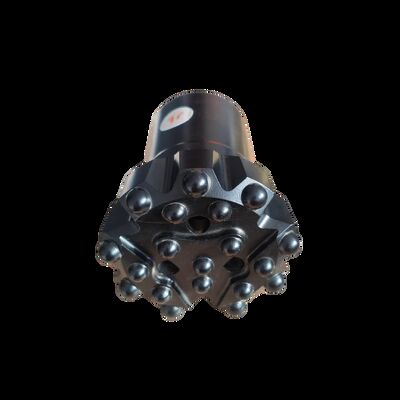

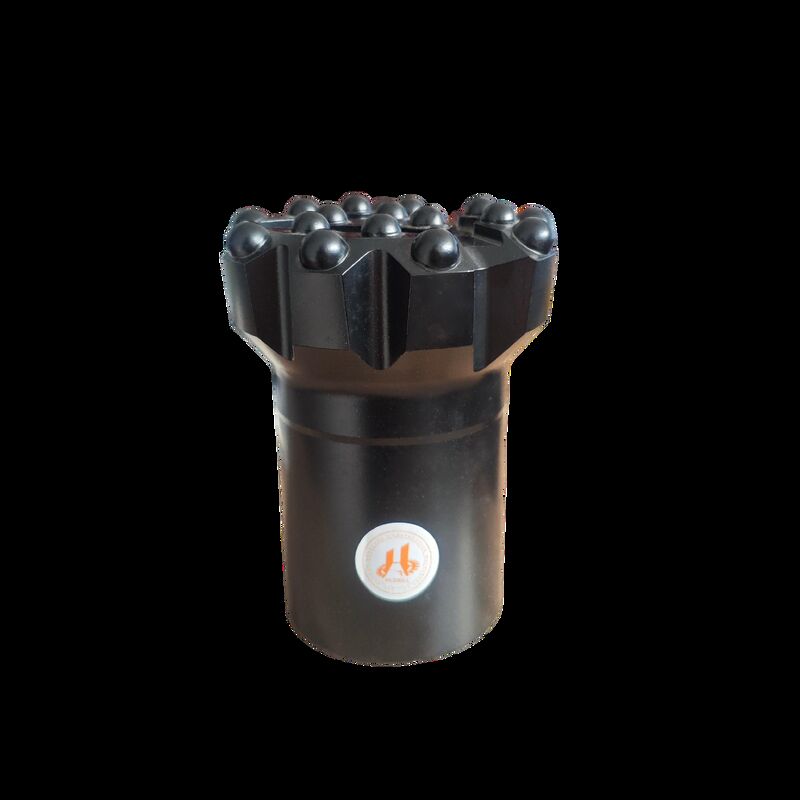

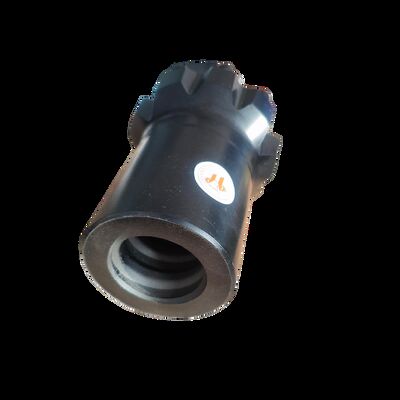

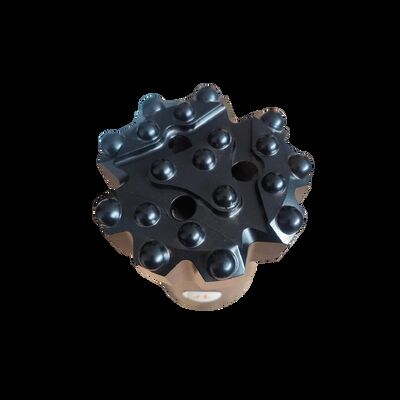

14 Tooth T51 Threaded Button Bit Impact Resistant Anti Jamming

Name: 14 Tooth T51 Threaded Button Bit Impact Resistant Anti Jamming
Brand: Yanggu Henglong Construction Machinery Co., Ltd.
SKU: 7516-1915-S48
Availability: InStock

Brand Name:	HLDRILL
Model Number:	7516-1915-S48
MOQ:	10PCS
Price:	Please contact us
Payment Terms:	T/T
Supply Ability:	3000 PCS Per month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO 9001 Certified

Name:

Threaded Button Bit

Face:

Flat / Drop Center / New Drop Center

Material:

Tungsten Carbide

Threadtype:

R / T / S / SR / ST

Weight:

Varies By Size

Wear Resistant:

High

Diameter:

116mm

Usageenvironment:

Mining, Construction, Quarrying

Compatibility:

Compatible With Most Drilling Rigs

Packaging Details:

Wooden Box

Highlight:

T51 Threaded Button Bit

Threaded Button Bit Impact Resistant

T51 Button Bit Impact Resistant

Product Description

Impact Resistant 14-Tooth T51 Threaded Button Bit for High-Efficiency Rock Drilling and Tunneling

Name	Impact-resistant T51 threaded button bit with Anti-Jamming Performance
Thread	T51
Diameter	116mm
Body Length	148mm
Carbide	4 × 12mm, 6 × 12mm, 9 × 14mm
Skirt Design	Ordinary
Carbide Design	Spherical tooth design
Face Design	Concave face

Product Overview

The Impact-Resistant 14-Tooth T51 Threaded Button Bit is a high-efficiency rock drilling tool engineered for complex tunneling conditions. Designed with superior impact resistance and adaptability, this bit excels in medium-hard to extremely hard rock formations, significantly enhancing drilling stability and operational efficiency in demanding tunneling applications.

Key Features & Benefits

Enhanced Impact Resistance: 14 carbide ball teeth with 40% increased single-tooth impact strength withstand tunnel rock drilling loads, minimizing tooth breakage and loss
Precision Drilling: Central positioning tooth design ensures drilling accuracy within ±1mm for uniform tunnel blasting results
Optimized Tunnel Performance: Multi-water hole dust removal system coarsens rock cuttings and reduces dust concentration by 60%
Extended Durability: Maintenance-free ball teeth design provides 5-6 times longer service life than traditional flat drill bits, reducing replacement frequency and improving construction continuity
Versatile Rock Formation Compatibility: Universal face head handles uneven hardness and fractured rock formations, preventing drill bit jamming and borehole collapse
