7° Tapered 43mm Diameter High Precision Carbide Button Bit For Mining And Quarrying

Name: 7° Tapered 43mm Diameter High Precision Carbide Button Bit For Mining And Quarrying
Brand: Yanggu Henglong Construction Machinery Co., Ltd.
SKU: Q6-43-7°-72
Price: Negotiable USD
Availability: InStock

Brand Name:	HLDRILL
Model Number:	Q6-43-7°-72
MOQ:	10PCS
Price:	Please Contact Us
Payment Terms:	T/T
Supply Ability:	3000 PCS Per month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO 9001 Certified

Drilling Diameter:

43mm

Bit Body Length:

72mm

Connection Size:

25mm*159mm

Carbide Insert Size:

2*9mm, 4*10mm

Flushing Holes:

2 Front, 1 Side

Taper Angle:

7°

Bit Body Material:

45CrNiMoV Alloy Steel

Carbide Grade:

YK05/T6

Insert Quantity:

5, 7 Or 8 Pieces

Packaging Details:

Wooden Boxes , Cardboard Boxes

Highlight:

7° Tapered Button Bit

43mm Diameter Button Bit

High Precision Carbide Button Bit

Product Description

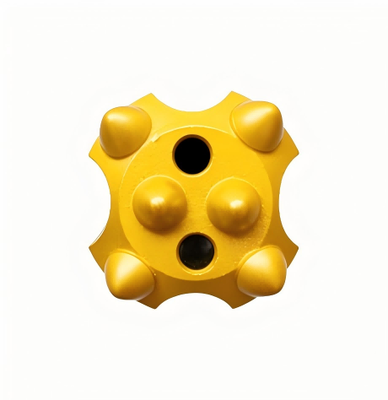

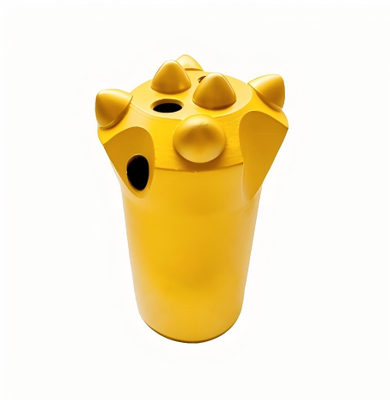

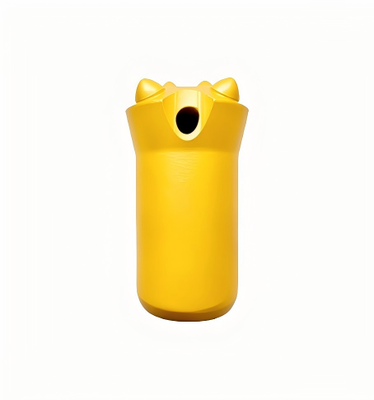

7° Tapered 43mm Diameter High Precision Carbide Button Bit For Mining And Quarrying

Product Overview

Optimize your shallow rock drilling operations with our premium Q6-43-7° tapered button bit, a high-performance small diameter drilling tool tailored for pneumatic and handheld rock drilling scenarios. Manufactured by Henglong, a professional rock bit supplier, this taper type drill bit adopts a friction taper fitting structure, differing greatly from threaded bits for deep hole drilling, delivering stable connection, efficient rock breaking and long service life for quarrying and mining projects.

Core Specifications

Drilling Diameter: 43mm standard
Bit Body: 72mm solid
Connection Size: 25mm × 159mm hexagonal
Carbide Inserts: Ballistic conical in two specifications (2×9mm, 4×10mm)
Face Design: Flat face with three-hole flushing system
Flushing System: 2 front flushing holes plus 1 side flushing hole

Customizable Specifications

Parameter	Available Options
Connection Sizes	Φ19, Φ22, Φ25
Drilling Diameters	32mm to 43mm
Taper Angles	6°, 7°, 11°, 12°
Insert Quantity	5, 7, or 8 pieces (customizable)

Material Construction: High-strength 45CrNiMoV alloy steel bit body with wear-resistant YK05/T6 grade tungsten carbide buttons. Features semi-ballistic carbide shapes and standard flat face structures.

Applications & Advantages

Primary Applications: Air leg rock drills and handheld rock drills for surface quarrying, small-scale mining, and rock bolt drilling
Key Benefits: Easy installation and disassembly, stable power transmission, low failure rate during long-term operation
Global Recognition: Widely used in major quarrying and mining regions including India, Saudi Arabia, Chile, and South Africa
Support Services: Bulk wholesale and customized processing available for cost-effective drilling solutions
