5 Tooth 59mm R32 Threaded Button Bit For Mining / Tunneling Rock Drilling

5 Tooth 59mm R32 Threaded Button Bit For Mining / Tunneling Rock Drilling

5 Tooth 59mm R32 Threaded Button Bit For Mining / Tunneling Rock Drilling

Brand Name: HLDRILL
MOQ: 10PCS
Price: Please contact us
Payment Terms: T/T
Supply Ability: 3000 PCS Per month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
ISO 9001 Certified
Face:
Flat、drop Center 、New Drop Center
Material:
Tungsten Carbide
Threadtype:
R、T、S、SR、ST
Weight:
1 Kg
Wearresistance:
High
Diameter:
59mm
Usageenvironment:
Mining, Construction, Quarrying
Compatibility:
Compatible With Most Drilling Rigs
Application:
Drilling
Name:
Button Bit
Packaging Details:
Wooden Boxes, Cardboard Boxes
Highlight:

59mm Threaded Button Bit

,

R32 Threaded Button Bit

,

Threaded Button Bits Rock Drilling

Product Description
5-tooth 59mm diameter R32 threaded button bit for efficient rock drilling in mining and tunneling
Product Specifications
Product Name 5-tooth diameter 59mm R32 threaded button bit
Diameter 59mm
Thread Type R32
Length 95mm
Carbide Dimension 2×12mm, 3×15mm
Weight 1 kg
Water Holes 1 on front, 1 on side
Skirt Design Standard
Steel Grade 42CrMo, 45CrNiMoVA
Product Overview
The Henglong 5-tooth, 59mm diameter R32 threaded ball tooth drill bit is a down-the-hole hammer drill bit engineered for demanding applications in mining, tunneling, and construction. Featuring R32 standard wave thread for reliable torque transmission, this drill bit delivers exceptional performance in medium-sized drilling operations.
Key Features & Benefits

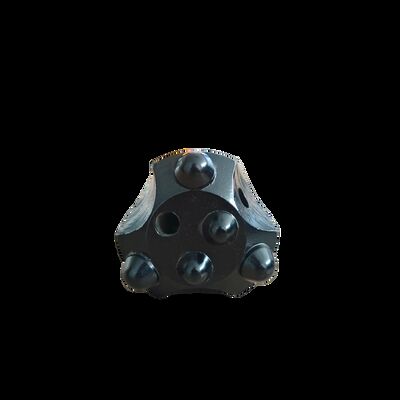

  • Five spherical carbide teeth optimize impact force and penetration power for efficient rock breaking
  • Higher pressure distribution on hard rocks due to fewer teeth configuration
  • Heat-treated alloy steel shank provides superior fatigue resistance
  • Low-temperature carbide brazing creates strong connections, reducing button loss risk in high-stress applications
  • Reduced replacement costs through optimized tooth configuration
5 Tooth 59mm R32 Threaded Button Bit For Mining / Tunneling Rock Drilling 05 Tooth 59mm R32 Threaded Button Bit For Mining / Tunneling Rock Drilling 1
Primary Applications
Mining development, tunnel excavation, slope support, foundation engineering, water well drilling, bolt holes, blasting holes, and small-scale exploration operations.
