11° Tapered Spherical Ball End Drill Bit 7 Tooth 40mm Diameter

11° Tapered Spherical Ball End Drill Bit 7 Tooth 40mm Diameter

11° Tapered Spherical Ball End Drill Bit 7 Tooth 40mm Diameter

Brand Name: HLDRILL
MOQ: 10PCS
Price: Please contact us
Payment Terms: T/T
Supply Ability: 3000 PCS Per month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
ISO 9001 Certified
Face:
Flat、drop Center 、New Drop Center
Material:
Tungsten Carbide
Threadtype:
R、T、S、SR、ST
Weight:
Varies By Size
Wearresistance:
High
Diameter:
40mm
Usageenvironment:
Mining, Construction, Quarrying
Compatibility:
Compatible With Most Drilling Rigs
Application:
Drilling
Name:
Button Bit
Packaging Details:
Wooden Boxes, Cardboard Boxes
Highlight:

11° Tapered Ball End Drill Bit

,

Spherical Ball End Drill Bit

,

Ball End Drill Bit 7 Tooth

Product Description
7-tooth 40mm diameter 11° tapered spherical button bit
Product Specifications
Product Name:
7-Tooth Tapered Ball-End Drill Bit
Diameter:
40mm
Body Length:
50mm (50mm/55mm/60mm/68mm/72mm/78mm available)
Tapered Degree:
11° (4°46′,6°,7°,11°,12° available)
Steel Grade:
42CrMo, 45CrNiMoVA
Carbide Grade:
YK05/KD10/KK05/YG9C/YG10C
Net Weight:
0.3 kg per piece
Packaging:
50 pieces per plywood case
Product Overview
The Hanglong 7-tooth tapered ball-end drill bit is engineered for high-precision surface drilling and narrow-space operations in soft to medium-hard rock formations. Combining spherical drill bit design, optimized tooth layout, and compact structure, it is the ideal solution for tunnel profiling, rock carving, slope reinforcement and anchoring, and applications requiring exceptional drilling accuracy.
Key Features & Benefits
  • Seven evenly distributed carbide buttons designed specifically for contour drilling and curved rock surfaces
  • Spherical design ensures full contact with curved surfaces and even distribution of impact force
  • 7-tooth configuration increases drilling speed by 18-22% in sandstone, limestone, and weathered granite compared to 5-tooth designs
  • 11° taper angle provides stable drilling performance and prevents slippage
  • Compatible with most lightweight drill rods and handheld drilling rigs without custom adapters
  • Ultra-compact 50mm height for access to confined spaces
  • YG11C tungsten carbide buttons deliver high hardness and impact toughness
  • Alloy steel body undergoes double heat treatment (quenching + tempering) for enhanced tensile strength and bending resistance

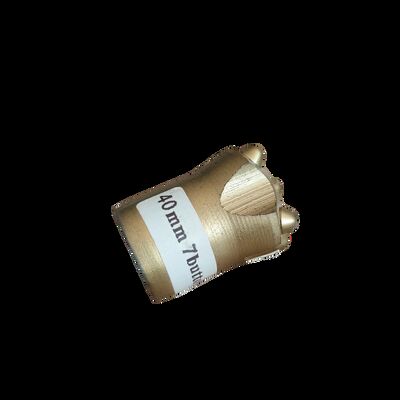

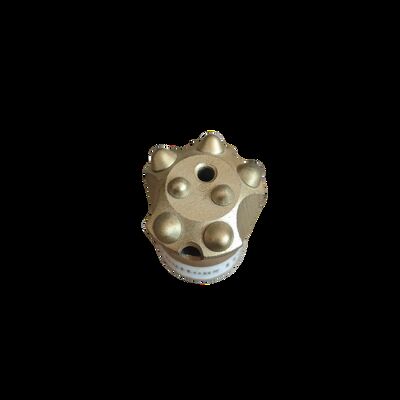

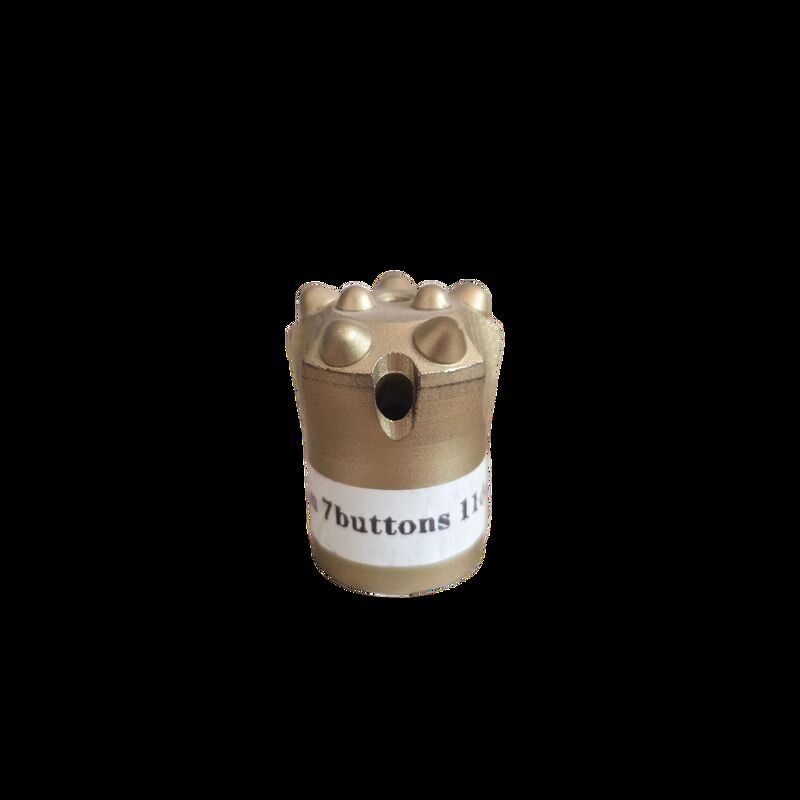

Product Images
11° Tapered Spherical Ball End Drill Bit 7 Tooth 40mm Diameter 0 11° Tapered Spherical Ball End Drill Bit 7 Tooth 40mm Diameter 1
If you have any questions, please contact us.
