9 Tooth 45mm R28 Threaded Button Bit For High Power Rock Drilling

Name: 9 Tooth 45mm R28 Threaded Button Bit For High Power Rock Drilling
Brand: Yanggu Henglong Construction Machinery Co., Ltd.
Availability: InStock

Brand Name:	HLDRILL
MOQ:	10PCS
Price:	Please contact us
Payment Terms:	T/T
Supply Ability:	3000 PCS Per month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO 9001 Certified

Face:

Flat、drop Center 、New Drop Center

Material:

Tungsten Carbide

Threadtype:

R、T、S、SR、ST

Weight:

0.67 Kg

Wearresistance:

High

Diameterrange:

45mm

Usageenvironment:

Mining, Construction, Quarrying

Compatibility:

Compatible With Most Drilling Rigs

Productname:

Button Bit

Name:

Button Bit

Packaging Details:

Wooden Boxes, Cardboard Boxes

Highlight:

45mm Threaded Button Bit

R28 Threaded Button Bit

9 Tooth Threaded Button Bit

Product Description

9-Tooth 45mm Diameter R28 Threaded Button Bit for High-Power Rock Drilling

Product Specifications

Diameter:

45mm

Body Length:

95mm

Thread:

R28

Carbide Brand & Grade:

ZCC/YK05/YG9C/YG10C

Steel Grade:

45CrNiMoVA, 42CrMo

Weight:

0.67 kg

Product Overview

Our 9-tooth, 45mm diameter R28 threaded button drill bit is engineered for high-intensity drilling in hard rock formations including granite, gneiss, and mineral-bearing rocks. Combining a robust R28 threaded connection with optimized tooth layout and durable construction, this bit delivers superior drilling speed, hole accuracy, and extended service life for large-scale mining, quarrying, blasting, and deep foundation drilling applications.

Key Features & Benefits

Optimized 9-Tooth Design: Features nine tungsten carbide teeth arranged in an alternating pattern that prevents overlapping during drilling and ensures even impact force distribution. This design reduces friction-generated heat and increases drilling speed by 20-25% compared to 6- or 7-tooth bits of the same diameter, maintaining efficiency in extremely abrasive and hard rock formations.
R28 Threaded Interface: Industry-standard R28 threaded connection provides secure attachment to R28 drill rods and connectors, effectively preventing thread slippage or breakage during high-torque drilling operations.
Balanced 95mm Length: The short to medium-length drill body design strikes the perfect balance between rigidity and drilling depth, minimizing vibration during high-speed rotation to improve operational efficiency.
Heavy-Duty Construction: Durable design suitable for harsh working conditions with wear-resistant tungsten carbide buttons (YG10C material with density ≥14.8 g/cm³, hardness HRA ≥89) that prevent chipping under repeated high impact loads. The alloy steel body undergoes quenching and tempering heat treatment for enhanced tensile strength (≥1200 MPa) and fatigue resistance.

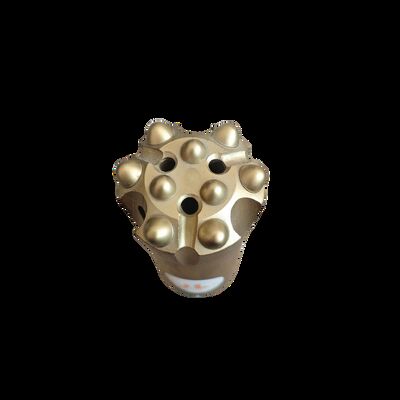

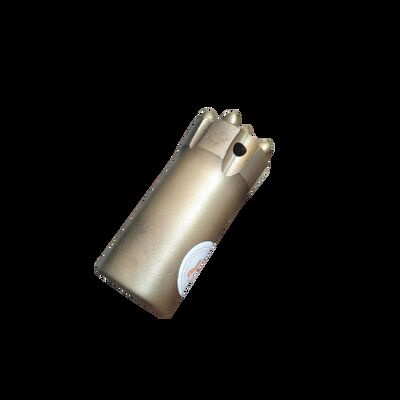

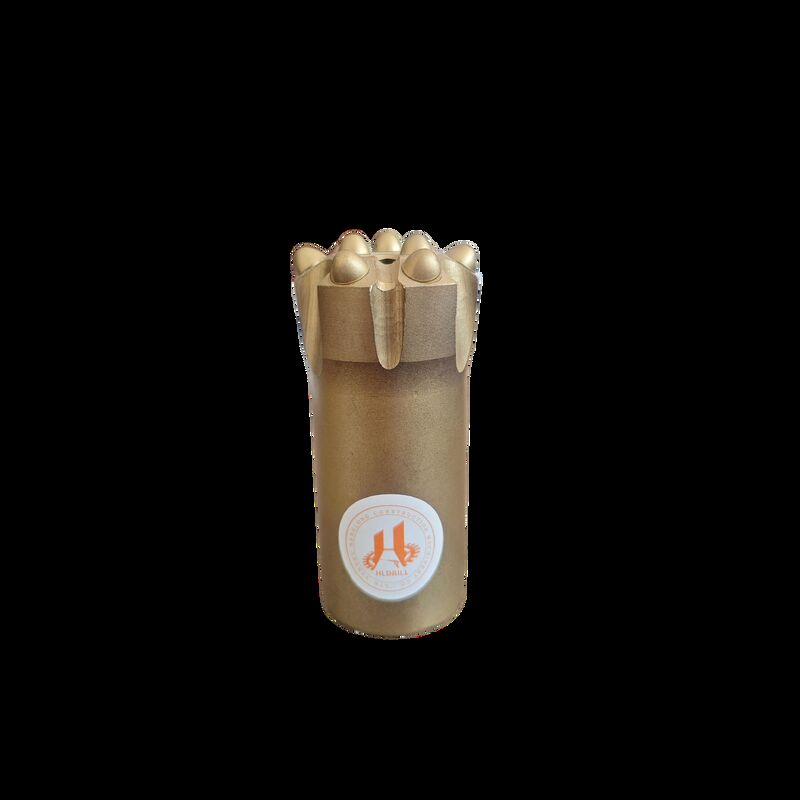

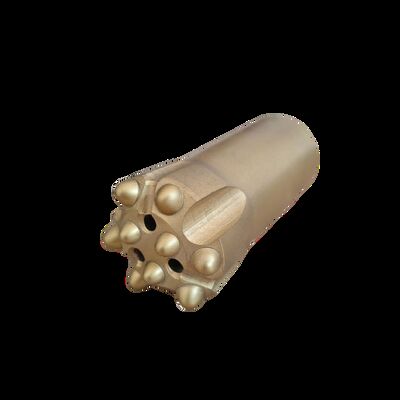

Product Images

Please contact us immediately if you have any needs.
