36mm×50mm Tapered Button Bit Impact Proof For Slope Reinforcement Rock Drilling

36mm×50mm Tapered Button Bit Impact Proof For Slope Reinforcement Rock Drilling

Brand Name: HLDRILL
MOQ: 10PCS
Price: Please contact us
Payment Terms: T/T
Supply Ability: 3000 PCS Per month
Detail Information
Place of Origin:
CHINA
Certification:
ISO 9001 Certified
Face:
Flat、drop Center 、New Drop Center
Material:
Tungsten Carbide
Threadtype:
R、T、S、SR、ST
Weight:
0.24kg
Wearresistance:
High
Diameter:
32mm
Usageenvironment:
Mining, Construction, Quarrying
Compatibility:
Compatible With Most Drilling Rigs
Application:
Drilling
Name:
Button Bit
Packaging Details:
Wooden Boxes, Cardboard Boxes
Highlight:

36mm×50mm Tapered Button Bit

,

Tapered Button Bit Impact Proof

,

Tapered Button Bit For Rock Drilling

Product Description

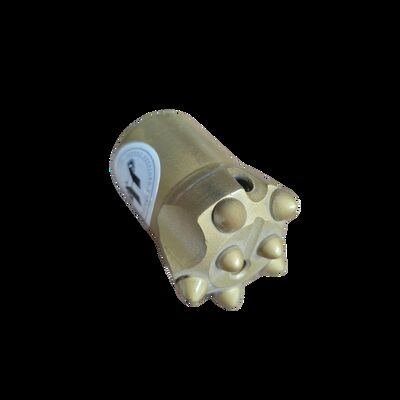

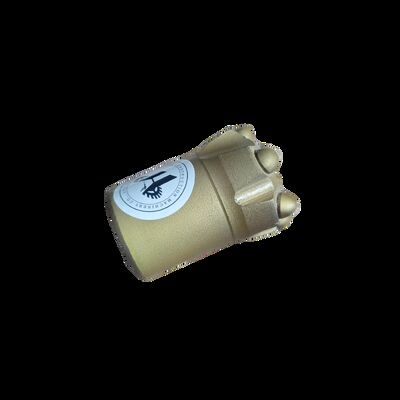

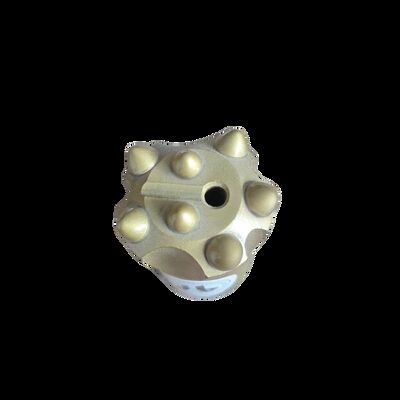

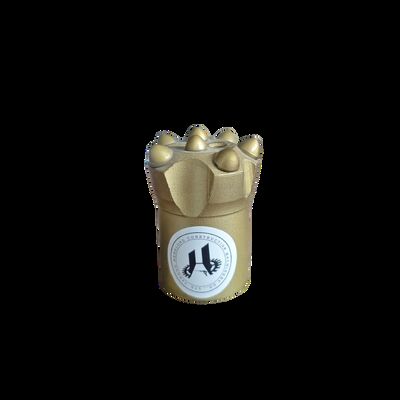

Impact-Proof 36mm×50mm Tapered Button Bit for Slope Reinforcement Rock Drilling
Diameter:
32mm
Body Length:
50mm
Tapered Degree:
11°
Carbide Size:
2*7mm, 5*7mm
Carbide Brand & Grade:
ZCC/YK05/KK05/YG9C/YG10C
Steel Grade:
45CrNiMoVA/42CrMo
Weight:
0.24kgs

This impact-resistant Henglong 36mm x 50mm tapered ball-tooth drill bit is specifically engineered for the demanding conditions of slope reinforcement projects, providing reliable performance for rock drilling operations in geotechnical engineering and small-scale mine slope stabilization. The bit combines a high-quality heat-treated steel body with wear-resistant tungsten carbide ball teeth, achieving optimal balance between structural toughness and drilling precision.

With a fixed drilling diameter of 36mm and working length of 50mm, this drill bit creates highly consistent holes that perfectly match standard slope reinforcement anchors and rock bolts. The tapered shank ensures seamless compatibility with lightweight rock drills of 7°, 11°, and 12° angles. The symmetrical ball tooth arrangement minimizes drilling deviation, enhancing the structural stability of slope support systems.
