38mm 7 Teeth Tapered Button Bit Rock Drilling With 45CrNiMoVA Steel

38mm 7 Teeth Tapered Button Bit Rock Drilling With 45CrNiMoVA Steel

38mm 7 Teeth Tapered Button Bit Rock Drilling With 45CrNiMoVA Steel

Brand Name: HLDRILL
MOQ: 10PCS
Price: Please contact us
Payment Terms: T/T
Supply Ability: 3000 PCS Per month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
ISO 9001 Certified
Face:
Flat、drop Center 、New Drop Center
Material:
Tungsten Carbide
Threadtype:
R、T、S、SR、ST
Weight:
0.35 Kg
Wearresistance:
High
Diameter:
38mm
Usageenvironment:
Mining, Construction, Quarrying
Compatibility:
Compatible With Most Drilling Rigs
Application:
Drilling
Name:
Button Bit
Packaging Details:
Wooden Box
Highlight:

38mm Button Bit Rock Drilling

,

7 Teeth Button Bit Rock Drilling

,

Tapered Rock Drill Button Bits

Product Description
38mm Diameter 7 Teeth Tapered Button Bit for Rock Drilling with 45CrNiMoVA Steel
Product Specifications
Product Name 38mm Tapered Button Bit
Diameter 38mm
Length 63mm
Carbide Dimension 2 × 7mm, 5 × 9mm
Weight 0.35 kg
Water Holes 2 on front, 1 on side
Skirt Design Standard
Carbide Brand and Grade YK15.6, YK20, YG8C, YG9C, YG10C, YG11C
Steel Grade 45CrNiMoVA
Product Overview
The Henglong 38mm 7-Teeth Tapered Button Bit is a high-efficiency drilling tool engineered for medium-hard to hard rock drilling applications. This precision tool delivers stable drilling accuracy, powerful rock-breaking capabilities, and exceptional service life, making it ideal for mining operations, tunnel excavation, and engineering blasting projects.
Taper Angle Options

Common taper angles include 7° and 11°, designed to match different drilling rigs and rock formations:

  • 7° Taper Angle: Focuses on drilling stability and precision
  • 11° Taper Angle: Prioritizes efficient rock breaking and penetration
Advanced Tooth Design
  • 7-Tooth Configuration: Evenly distributed ball-tooth layout for balanced impact force distribution
  • Superior Wear Resistance: Prevents excessive wear on individual teeth compared to 5-tooth and 6-tooth designs
  • 360° Cutting Capability: Spherical carbide inserts eliminate blind spots and maintain rock-breaking efficiency even after blunting
Product Images

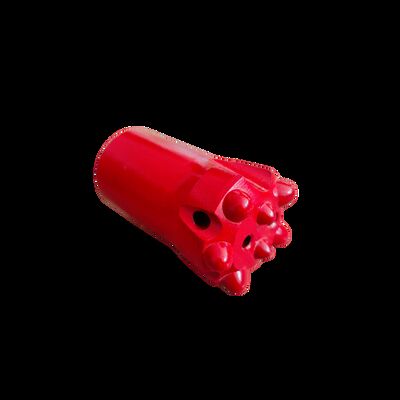

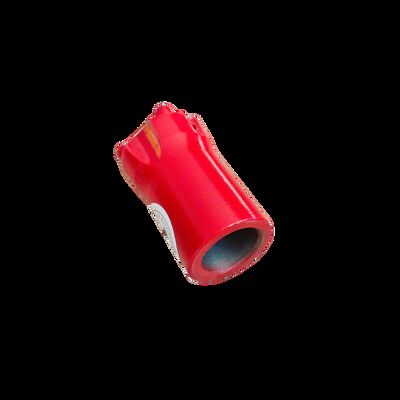

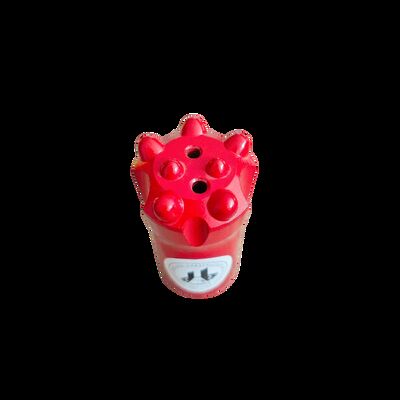

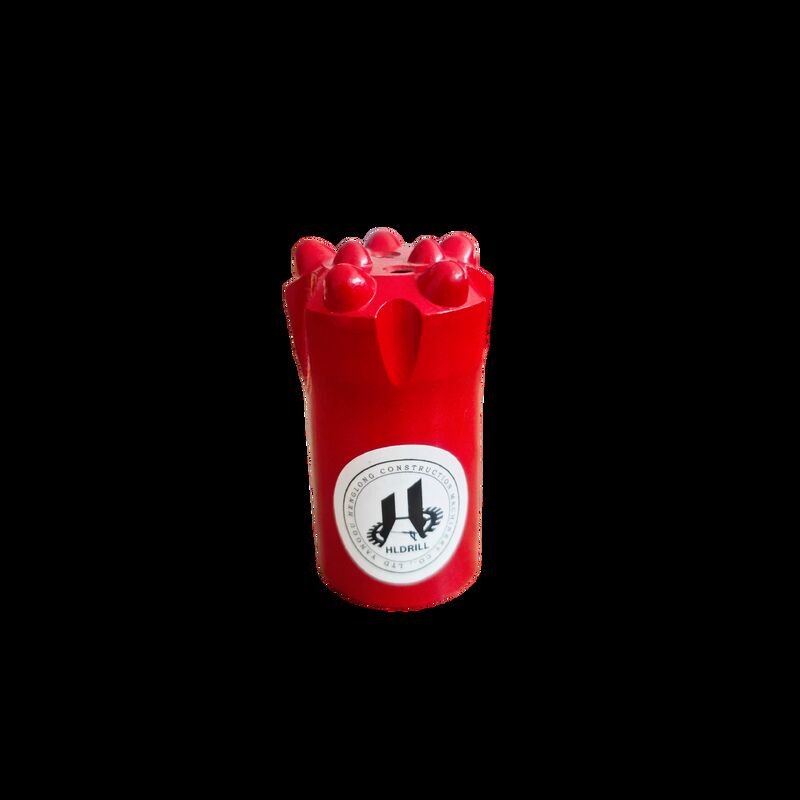

38mm 7 Teeth Tapered Button Bit Rock Drilling With 45CrNiMoVA Steel 0 38mm 7 Teeth Tapered Button Bit Rock Drilling With 45CrNiMoVA Steel 1
Customization Available: For personalized specifications and custom orders, please contact our technical team for consultation.
