34mm Diameter 7° Taper Drill Bit Wear Resistant Button Drill Bit For Blast Hole Drilling

34mm Diameter 7° Taper Drill Bit Wear Resistant Button Drill Bit For Blast Hole Drilling

34mm Diameter 7° Taper Drill Bit Wear Resistant Button Drill Bit For Blast Hole Drilling

Brand Name: HLDRILL
MOQ: 10PCS
Price: Please contact us.
Payment Terms: T/T
Supply Ability: 3000 per month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
ISO 9001 Certified
Face:
Flat、drop Center 、New Drop Center
Material:
Tungsten Carbide
Threadtype:
R、T、S、SR、ST
Weight:
0.2kg
Wearresistance:
High
Diameter:
34mm
Usageenvironment:
Mining, Construction, Quarrying
Compatibility:
Compatible With Most Drilling Rigs
Taper Degree:
7°
Name:
Button Bit
Packaging Details:
Wooden Box
Highlight:

34mm Diameter Button Bit

,

7° Taper Drill Bit

,

Wear Resistant Button Drill Bit

Product Description
34mm Diameter 7° Taper Drill Bit , Wear Resistant Button Bit for Blast Hole Drilling
Product Specifications
Diameter 34mm
Taper Degree 7°
Length 54mm
Carbide Dimensions 2mm×7mm, 4mm×8mm
Weight 0.2kg
Water Holes 1 on front, 2 on side
Skirt Design Standard
Carbide Brand & Grade YK15.6, YK20, YG8C, YG9C, YG10C, YG11C
Steel Grade 42CrMo, 40Cr
Product Overview
The Henglong 34mm 7° tapered drill bit is a reliable and cost-effective solution that balances drilling speed with exceptional durability. Engineered specifically for blast hole drilling applications, this drill bit addresses critical field challenges including frequent drill bit wear and inconsistent hole quality, delivering stable performance to keep projects on schedule.
Key Features
  • 7° Tapered Shank Connection: Industry-standard design creates tight, non-slip connections with matching drill rods, minimizing torque loss during high-impact drilling
  • Enhanced Wear Resistance: Forged from high-strength alloy steel with special surface coating to withstand rock dust and harsh underground conditions
  • Optimized for Blast Holes: 34mm diameter ideal for small to medium-sized blast holes, ensuring precise explosive placement for optimal rock fragmentation
  • Vibration-Resistant Design: Prevents tool detachment in high-vibration mining environments, reducing downtime during drill bit changes
Application Details
This 34mm diameter drill bit is specifically designed for blast hole drilling applications, ensuring precise placement of explosives to optimize rock fragmentation while minimizing ore dilution. Suitable for both open-pit quarries and underground mines, it withstands the rigorous demands of continuous drilling operations.

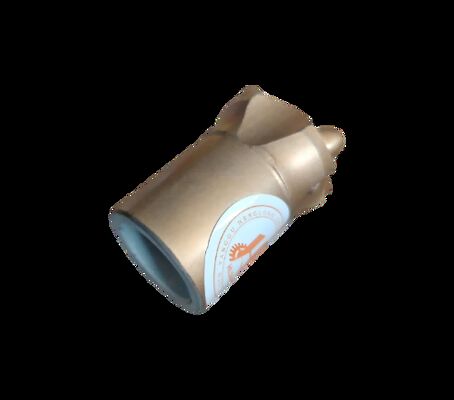

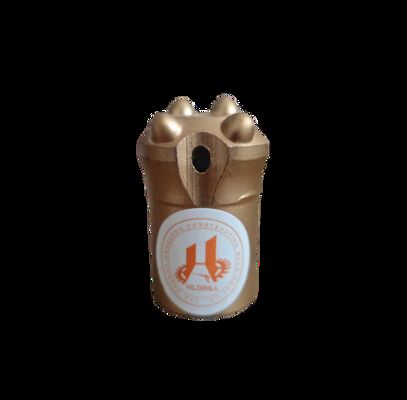

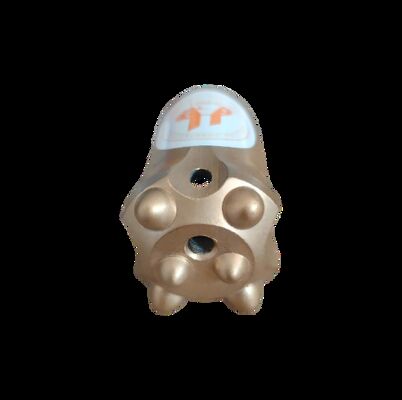

Product Images
34mm Diameter 7° Taper Drill Bit Wear Resistant Button Drill Bit For Blast Hole Drilling 034mm Diameter 7° Taper Drill Bit Wear Resistant Button Drill Bit For Blast Hole Drilling 1
Technical Support: For any questions or technical assistance, please contact our expert technical team for professional guidance and support.
Tags:

Tungsten Carbide Button Bit

Tapered Button Bit

Button Bit For Rock Drilling
