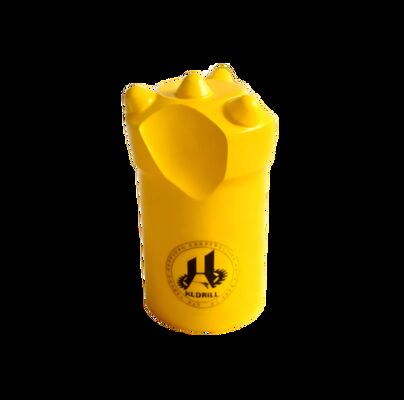

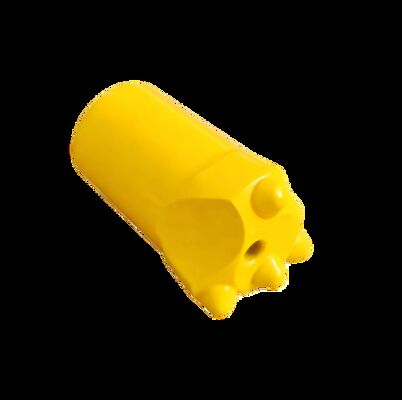

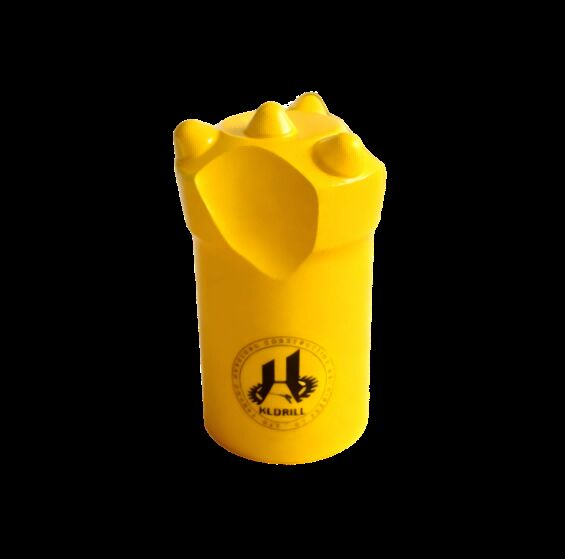

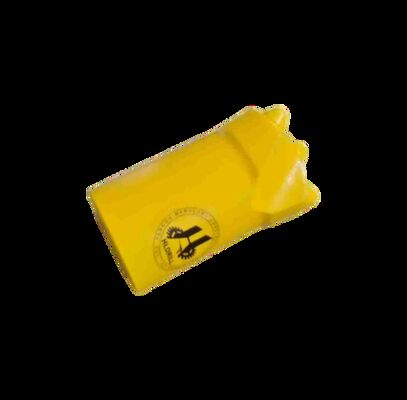

40mm 7 Degree Button Bit with for High-Efficiency Hard Rock Drilling

40mm 7 Degree Button Bit with for High-Efficiency Hard Rock Drilling

40mm 7 Degree Button Bit with for High-Efficiency Hard Rock Drilling

Brand Name: HLDRILL
Model Number: 45CrNiMoVA
MOQ: 10PCS
Price: Please contact us
Payment Terms: T/T
Supply Ability: 2000PCS Per Month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
ISO 9001 Certified
Face:
Flat、drop Center 、New Drop Center
Material:
Tungsten Carbide
Threadtype:
R、T、S、SR、ST
Weight:
0.4kg
Diameter:
40mm
Usageenvironment:
Mining, Construction, Quarrying
Compatibility:
Compatible With Most Drilling Rigs
Heat Treatment Method:
Vacuum, Carburizing
Productname:
40mm 7 Degree Button Bit With For High-Efficiency Hard Rock Drilling
Application:
Drilling
Name:
Button Bit
Packaging Details:
Wooden Box
Highlight:

40mm Button Bit

,

7 Degree Button Bit

,

65mm Body Length Button Bit

Product Description
40mm 7 Degree Button Bit with  for High-Efficiency Hard Rock Drilling
Introducing the 40mm 7 Degree Button Bit - a professional and high-efficiency hard rock drilling tool designed to revolutionize drilling operations. With superior design and engineering, this button bit streamlines drilling processes for improved efficiency and time savings.
Product Specifications
Specification Details
Diameter 40mm
Degree 7° (4°46′,6°,7°,11°,12° available)
Carbide/Inserts 4*9.38
Carbide Grade YK05/KD10/KK05/YG9C/YG10C
Body Length 65mm (50mm/55mm/60mm/68mm/72mm/78mm available)
Steel Grade 42CrMo, 45CrNiMoVA
Processing Method Forging, casting, stamping, machining
Heat Treatment Method Vacuum, carburizing
Weight 0.4kg
Performance Advantages
  • Superior to tapered chisel bits and tapered cross bits in technology and efficiency
  • Extended primary drilling time for reduced tool replacement frequency
  • 7° degree design minimizes friction between bit and rock surface
  • 40mm diameter ensures stable, uniform hole formation
  • Ideal for projects requiring precise hole sizes in hard rock conditions
Customization Options
We offer customized services to meet specific project requirements. Contact us to discuss custom configurations.
Contact us for customized services and to experience the difference in your drilling operations.
