| Brand Name: | HLDRILL |
| Model Number: | 32-7°-67 |
| MOQ: | 10PCS |
| Price: | Please Contact Us |
| Payment Terms: | T/T |
| Supply Ability: | 3000 PCS Per month |
| Bit Diameter | 32 mm |
|---|---|
| Overall Length | 67 mm |
| Taper | 7° |
| Carbide Tip Size | 12 mm × 8 mm |
| Flushing Ports | 1 front port + 2 side ports |

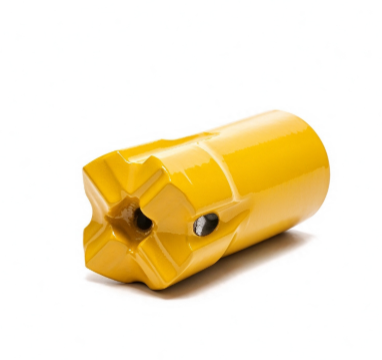

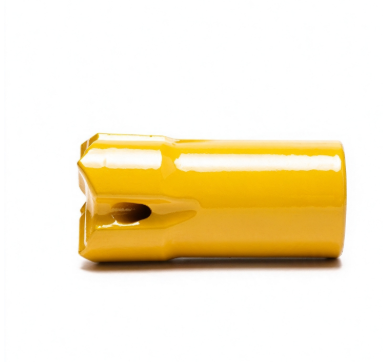

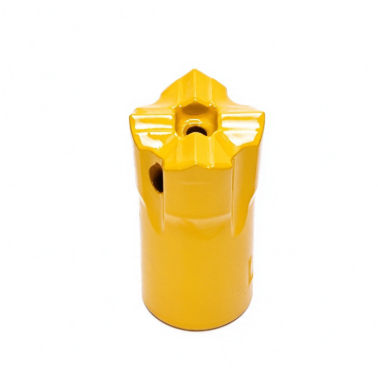

Manufactured by Henglong, this 7° taper cross bit is a reliable rock drilling tool for mining and quarry operations. It performs well in ferrous ore (iron, manganese), non-ferrous ore (gold, silver, copper), as well as marble and granite stone. When drilling rock with hardness F8–14, it delivers practical penetration of up to 15–18 meters.
Paired with lightweight hand-held jackhammers including the Y6, Y10, and Y24, it handles hole sizes of 20–45 mm for drilling depths under 5 m. It is a popular choice in natural stone quarries for small boreholes, stone trimming, and secondary rock breaking. This cross bit fits 22 mm or 12 mm hexagonal taper drill steels with 4°, 6°, 7°, 11°, and 12° tapers.
We select premium raw materials and apply custom heat treatment for strong wear resistance. As a direct manufacturer, we maintain stable stock capacity and support custom design with flexible lead times to match your project demands.
This 32 mm, 67 mm long, 7° taper cross bit is purpose-built for handheld rock drill operations.
