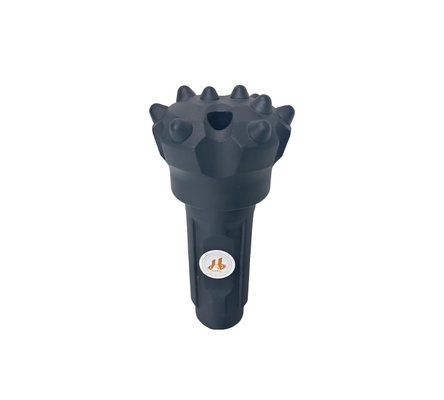

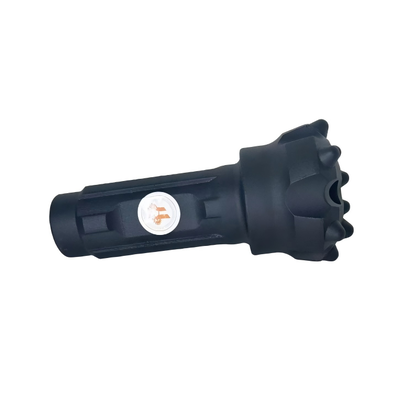

TCIR90 90mm DTH Button Bit Low Pressure Wear Resistant TCI Carbide For Quarry And Mining Drilling

Brand Name:	HLDRILL
MOQ:	10PCS
Price:	Please Contact Us
Payment Terms:	T/T
Supply Ability:	3000 PCS Per month

Detail Information

Product Description

Detail Information

Place of Origin:

Liaocheng , Shandong , China

Certification:

ISO 9001 Certified

Model:

TCIR90

Drilling Diameter:

Standard 90mm

Matching Hammer:

CIR90 Low Air Pressure DTH Hammer

Working Air Pressure:

0.5 - 0.7MPa Low Pressure Compressor

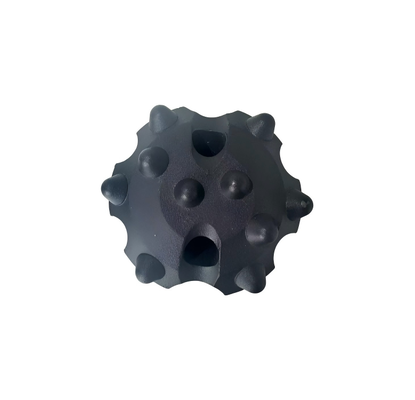

Carbide Button Layout:

6×14mm Gauge Buttons + 2×13mm Convex Buttons + 2×12mm Central Buttons

Carbide Grade:

YK05 Anti Abrasion Tungsten Carbide Inserts

Bit Face Design:

Convex Semi Ballistic Face, Fast Slag Discharge

Processing Craft:

CNC Precision Machining + Overall Heat Treatment

Material:

One Piece Forging Alloy Steel Body + High Toughness Semi Ballistic Tungsten Carbide Inserts

Packaging Details:

Wooden Boxes , Cardboard Boxes

Product Description

TCIR90 90mm DTH Button Bit Low Pressure Wear Resistant TCI Carbide For Quarry And Mining Drilling

High performance TCIR90 90mm DTH BIT, CIR shank low air pressure down the hole button bit with premium tungsten carbide inserts. Ideal for open pit mining, stone quarry, water borewell, foundation anchoring, hard rock drilling. OEM available, HengLong direct supply, long service life DTH drill bits worldwide delivery.

Our TCIR90 90mm DTH BIT is an upgraded CIR series down the hole button bit independently developed for 90mm standard blast hole drilling, perfectly matched with CIR90 low pressure DTH hammer, widely recognized by drilling engineers for stable penetration speed and ultra long service life. Unlike generic cheap DTH drill bits circulating in the market, TCIR90 90mm DTH BIT adopts one piece forging alloy steel body + high toughness semi ballistic tungsten carbide inserts, specially optimized for abrasive hard rock like granite, basalt, quartzite and limestone. Whether you run a small quarry borewell project or large open pit mining blast hole operation, this 90mm DTH button bit effectively cuts down your tool replacement frequency and overall drilling operation cost.

Product Specifications

Model	TCIR90
Drilling Diameter	Standard 90mm
Matching Hammer	CIR90 low air pressure DTH hammer
Working Air Pressure	0.5 - 0.7MPa low pressure compressor
Carbide Button Layout	6×14mm gauge buttons + 2×13mm convex buttons + 2×12mm central buttons
Carbide Grade	YK05 anti abrasion tungsten carbide inserts
Bit Face Design	Convex semi ballistic face, fast slag discharge
Processing Craft	CNC precision machining + overall heat treatment
Custom Service	Support customized color, carbide size, OEM logo, bulk export packaging

Key Advantages

Low Pressure High Drilling Efficiency, Save Compressor Cost
Wear Resistant TCI Carbide, Longer Service Life
Optimized Multi Hole Slag Discharge Structure
Integral Forging Bit Body, Anti Crack Anti Breakage
Full Compatibility Flexible Customization

Applications

Open pit mining blast hole drilling (gold mine, iron ore, coal mine, bauxite mine)
Granite, marble, limestone stone quarry blasting drilling
Residential commercial water borewell drilling, geothermal shallow well drilling
Highway, bridge, tunnel foundation anchoring hole drilling
Municipal infrastructure rock excavation, slope stabilization drilling
Small construction engineering rock demolition drilling

Maintenance Tips to Extend TCIR90 90mm DTH BIT Service Life

Conduct full inspection before drilling, check carbide buttons for cracks or falling off, clean exhaust holes to prevent blockage
Match 0.5 - 0.7MPa low pressure air compressor, avoid over pressure operation causing rapid carbide wear
Add water for wet drilling when drilling dry hard rock to reduce carbide high temperature abrasion
Regularly polish worn carbide buttons with professional grinding machine to restore drilling speed
Store the DTH bit in dry warehouse with anti rust oil coating when not in use for a long time
