Plug Hole Integral Steel High Grade Alloy Steel Tungsten Carbide Tip For Direct Energy Transmission Superior Chip Flushing

Brand Name:	HLDRILL
MOQ:	10PCS
Price:	Please contact us
Payment Terms:	T/T
Supply Ability:	3000 PCS Per month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO 9001 Certified

Product Type:

Plug Hole Integral Drill Steel

Material:

High Grade Alloy Steel Tungsten Carbide Tip

Shank Size:

Hex 19×108mm / Hex 22×108mm

Working Length:

150mm / 200mm / 300mm / 550mm / 710mm

Bit Diameter:

φ17mm / φ20mm / φ22mm / φ23mm

Turned Length:

100mm / 150mm

Weight:

0.7kg – 2.9kg

Application:

Quarry , Mining , Small Hole Drilling

Feature:

Integral Rod Bit , No Shank Adapter Needed

Packaging Details:

Wooden Boxes, Cardboard Boxes

Highlight:

high grade alloy steel drill rod

tungsten carbide tip drill rod

direct energy transmission drill rod

Product Description

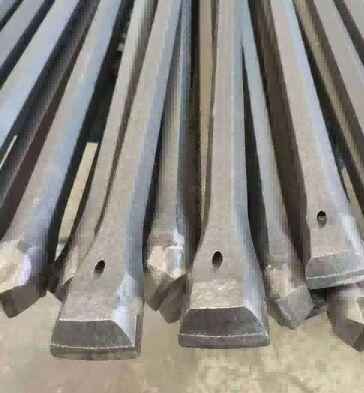

Plug Hole Integral Steel High Grade Alloy Steel Tungsten Carbide Tip For Direct Energy Transmission Superior Chip Flushing

Optimizing your small hole drilling operations requires equipment that minimizes energy loss and maximizes impact. Our Integral Rock Drill Steels are engineered for precision in stone quarries and underground mining, offering a seamless, one-piece construction that eliminates the need for extra coupling components.

Technical Specifications Configurations

We provide a comprehensive range of dimensions to suit various rock drills and geological conditions:

Bit Profile: Durable Chisel shaped carbide heads
Available Shanks:
- H19 × 108mm (Ideal for ultra small holes)
- H22 × 108mm (The industry standard for quarrying)
- H25 × 159mm (Designed for heavy duty pneumatic drills)
Drilling Diameter: 17mm - 42mm (Customizable D-range)
Operational Length: Flexible options from 150mm to 9600mm (L)
Premium Alloys: Manufactured from high grade Z708 (40SiMnCrNiMo) and 55SiMnMo steel for extreme fatigue resistance

Core Performance Advantages

Direct Energy Transmission: By integrating the bit and rod, percussion energy is transferred directly from the rock drill to the rock face. This avoids the 10%-15% energy wastage typical of multi piece systems.
Precision Weight Balancing: The optimized 1:1 piston-to-bit weight ratio extends the service life of the tool while delivering more crushing force per blow.
Superior Chip Flushing: Features an advanced central flushing hole for efficient air exhaust, ensuring cuttings are discharged rapidly to prevent secondary crushing and overheating.
Cost Effective Operation: The all-in-one design means no investment is needed for shank adapters or coupling sleeves, reducing your total cost per foot drilled.

Primary Application Fields

Our Plug Hole Steels are the go-to choice for diverse geotechnical and industrial projects:

Dimensional Stone Quarrying: Granite, marble, and limestone extraction
Infrastructure Civil Works: Road construction, trenching, and gas line installation
Mining Tunneling: Underground roadway support and blast hole preparation
Stabilization Projects: Rock anchoring, foundation drilling, and water well industry

Why Partner with Us?

Top Tier Raw Materials: We use only the finest tungsten carbide inserts and alloy steels
Global Supply Capability: Professional technical support with safe, seaworthy packaging (wooden crates or bundles)
Proven Reputation: Competitive factory direct pricing with comprehensive after sales reliability

Specification

The Plug Hole integral steels

19mm Chisel Bit Integral

19mm × 108mm Shank

Length (mm)	Length (foot)	Bit Dia. (mm)	Weight approx (kg)	HENGLONG P/N
400	1'4"	29	1.3	5H19-291508-0400-40-2
500	1'8"	29	1.5	5H19-291508-0500-40-2
800	2'7"	28	2.2	5H19-281508-0800-40-2
1000	3'33/8"	28	2.6	5H19-281508-1000-40-2
1200	3'11"	27	3.0	5H19-271508-1200-40-2
1600	5'3"	27	3.9	5H19-271508-1600-40-2
2400	7'10"	26	5.7	5H19-261508-2400-40-2
3200	10'6"	25	7.5	5H19-251508-3200-40-2
4000	13'1"	24	9.2	5H19-241508-4000-40-2
400	1'4"	24	1.3	5H19-241508-0400-40-2
800	2'7"	23	2.2	5H19-231508-0800-40-2
600	2'	27	1.7	5H19-271508-0600-40-2
1200	3'11"	26	3.0	5H19-261508-1200-40-2
2000	6'7"	24	4.8	5H19-241508-2000-40-2
2400	7'10"	24	5.7	5H19-241508-2400-40-2
2700	8'10"	24	6.3	5H19-241508-2700-40-2
400	1'4"	35	1.3	5H19-351508-0400-40-2
800	2'7"	34	2.2	5H19-341508-0800-40-2

Plug Hole Integral Steels 19mm × 108mm Shank

Length (mm)	Bit Dia. (mm)	Turned Length (mm)	Weight approx (kg)	HENGLONG P/N
210	17	150	0.7	5H19-171308-0210-40-2
210	20	150	0.7	5H19-201308-0210-40-2
210	22	150	0.7	5H19-221308-0210-40-2
260	20	200	0.8	5H19-201308-0260-40-2
260	22	200	0.8	5H19-221308-0260-40-2
310	22	250	0.9	5H19-221308-0310-40-2
340	20	280	1.0	5H19-201308-0340-40-2

19mm × 82mm Shank

Length (mm)	Bit Dia. (mm)	Turned Length (mm)	Weight approx (kg)	HENGLONG P/N
210	20	150	0.7	5H19-201308-0210-40-2
210	22	150	0.7	5H19-221308-0210-40-2

22mm Chisel Bit Integral

22mm × 108mm Shank

Length (mm)	Length (foot)	Bit Dia. (mm)	Weight approx (kg)	HENGLONG P/N
800	2'7"	34	3.0	5H22-341810-0800-40-2
1600	5'3"	33	5.2	5H22-331810-1600-40-2
2400	7'10"	32	8.0	5H22-321808-2400-40-2
3200	10'6"	31	10.2	5H22-311808-3200-40-2
4000	13'1"	30	12.9	5H22-301808-4000-40-2
4800	15'9"	29	15.1	5H22-291508-4800-40-2
5600	18'4"	28	17.6	5H22-281508-5600-40-2
6400	21'	27	20.1	5H22-271508-6400-40-2
7200	23'6"	26	22.5	5H22-261508-7200-40-2
8000	26'2"	31	25.0	5H19-311508-8000-40-2
400	1'4"	34	1.7	5H22-341810-0400-40-2
800	2'7"	33	3.0	5H22-331810-0800-40-2
1200	3'11"	32	4.1	5H22-321808-1200-40-2
1600	5'3"	31	5.2	5H22-311808-1600-40-2
2000	6'7"	30	6.7	5H22-301808-2000-40-2
600	2'	41	2.4	5H22-411810-0600-40-2
1200	3'11"	40	4.3	5H22-401810-1200-40-2
1800	5'11"	39	6.2	5H22-391810-1800-40-2
2400	7'10"	38	8.0	5H22-381810-2400-40-2
400	1'4"	41	1.7	5H22-411810-0400-40-2
800	2'7"	29	3.0	5H22-291508-0800-40-2
800	2'7"	38	3.1	5H22-381810-0800-40-2
1200	3'11"	39	4.3	5H22-391810-1200-40-2
1600	5'3"	36	5.2	5H22-361810-1600-40-2
1800	5'11"	36	6.0	5H22-361810-1800-40-2
2000	6'7"	32	6.7	5H22-321808-2000-40-2
2400	7'10"	27	8.0	5H22-271508-2400-40-2
3200	10'6"	27	10.2	5H22-271508-3200-40-2
3200	10'6"	32	10.3	5H22-321808-3200-40-2
6400	21'	30	20.1	5H22-301808-6400-40-2
8000	26'2"	26	25.0	5H22-261508-8000-40-2
