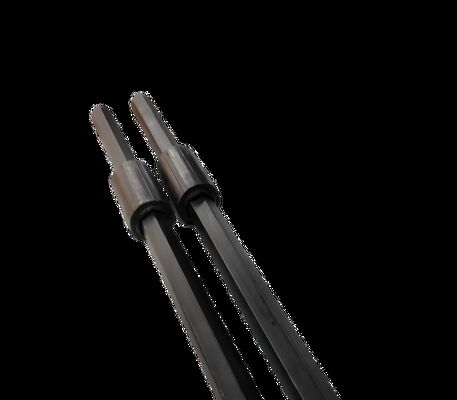

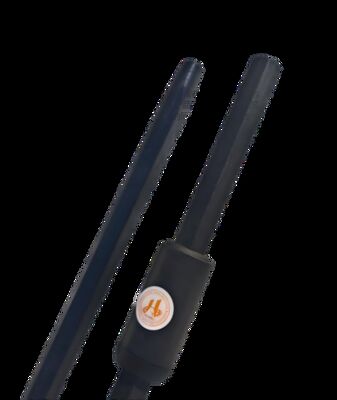

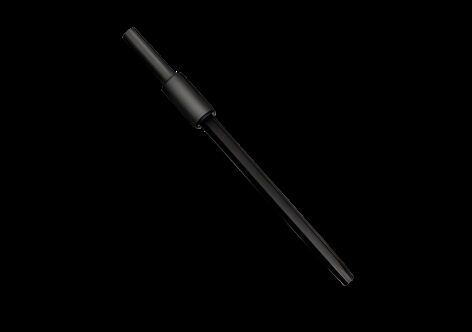

513mm Length 11° Taper Drill Rod High toughness With Rubber Collar

Name: 513mm Length 11° Taper Drill Rod High toughness With Rubber Collar
Brand: Yanggu Henglong Construction Machinery Co., Ltd.
Availability: InStock

Brand Name:	HLDRILL
MOQ:	10PCS
Price:	Please contact us
Payment Terms:	T/T
Supply Ability:	3000 per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001

Features:

High Toughness, Impact Resistance, Wear Resistance, And Not Easy To Break

Name:

Taper Drill Rod

Applicable Equipment:

Handheld Rock Drills, Pneumatic Rock Drills

Applicable Working Conditions:

Quarries, Mines, Tunnels, Engineering Blasting Drilling

Structure And Connection:

Type: Tapered Drill Pipe Connection Taper: 11° Length: 513mm Structure: Solid Drill Pipe Configuration: With Rubber Ring (rubber Retainer Ring), Dustproof, Anti-loosening, And Joint Protection

Material:

High-Strength Alloy Structural Steel

Heat Treatment:

Overall Quenching + Tempering

Common Rod Diameters:

19mm / 22mm / 25mm

Connection Type:

Tapered Connection

Product Features:

Highly Versatile, Compatible With Standard Taper Drill Bits

Packaging Details:

Wooden box/Cardboard box

Highlight:

513mm Length Taper Drill Rod

11° Taper Drill Rod

Rubber Collar Rock Drill Rod

Product Description

513mm Length 11° Taper Drill Rod with Rubber Collar for Rock Drilling

Product Specifications

Model Number :

Hex22mm

Rod Length :

513mm

Type :

Tapered drill rod with rubber collar sleeve

Taper :

11°

Material :

55SiMnMo

The Henglong 513mm Taper Drill Rod with Rubber Collar is engineered for demanding rock drilling applications in mining, quarrying, and civil engineering projects. This professional-grade tool features an innovative 11° tapered connection with an integrated rubber collar designed to enhance durability, operational safety, and drilling efficiency.

Key Features & Benefits

Vibration Absorption: The integrated rubber collar acts as a buffer, absorbing harmful shocks and vibrations during impact drilling to minimize stress on equipment components
Extended Equipment Life: Reduced vibration transmission helps prolong the lifespan of the drill rod, drill bit, and rock drill machinery
Efficient Power Transmission: The 11° tapered connection creates a tight, self-locking fit with drill bits, ensuring optimal transfer of impact energy and rotational torque for breaking hard rock formations
Superior Durability: Manufactured from heat-treated 55SiMnMo alloy steel for exceptional resistance to bending, twisting, and wear under high-frequency impacts and heavy loads

Customization Available: For custom orders and specialized requirements, please contact us for professional customization services tailored to your specific drilling applications.
