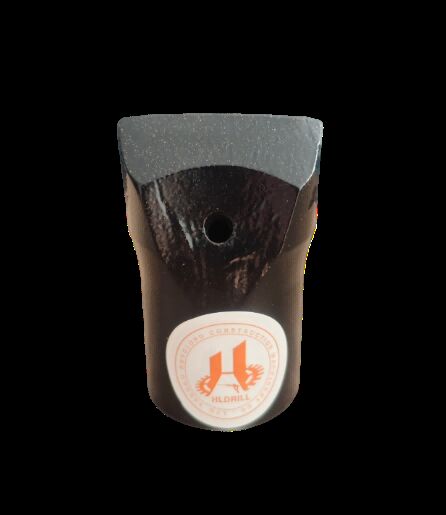

Horseshoe Chisel Drill Bit Wear Resistant For Tunnel Construction

Brand Name:	HLDRILL
MOQ:	10 PCS
Price:	Please contact us
Payment Terms:	T/T
Supply Ability:	2000 PCS Per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001

Product Name:

Chisel Drill Bit

Product Type:

Horseshoe-shaped Drill Bit / Tapered Shank Drill Bit

Applicable Equipment:

Handheld Rock Drills, Pneumatic Drills, Pneumatic Rock Drilling Rigs

Application Scenarios:

Mines, Tunnels, Quarries, Hard Rock Percussion Drilling

Blade Structure:

Horseshoe-shaped Integral Cutting Edge

Applicable Drill Pipe:

Tapered Drill Pipe

Design Advantages:

Reduces Stress Concentration, Making It Less Prone To Chipping And Breakage

Chip Removal Performance:

Smooth Chip Removal, Less Prone To Drill Jamming, And High Drilling Efficiency

Material And Process:

High-quality Steel Body + High Wear-resistant Carbide Blade, Heat-treated For Strengthening

Packaging Details:

Wooden Box

Highlight:

Horseshoe Chisel Drill Bit

Chisel Drill Bit Wear Resistant

Tunnel Construction Chisel Drill Bit

Product Description

Horseshoe Drill Bit: Reduced Stress Concentration and Improved Chip Removal

The horseshoe-shaped drill bit is a specialized impact drill bit featuring a unique U-shaped/arc-shaped cutting profile that resembles a horseshoe. Designed for use with rock drills and tapered/threaded drill rods, this innovative design balances drilling efficiency, hole quality, and wear resistance. It is particularly effective in fractured, jointed, or medium-hard rock formations where traditional chisel-shaped drill bits are prone to chipping or jamming.

Advanced Cutting Design

The cutting head features a horseshoe-shaped cutting edge constructed from durable cemented carbide. This curved design significantly reduces stress concentration, enhances chip removal efficiency, and prevents cutting edge chipping in fractured rock conditions. Unlike conventional rock drill bits with straight cutting edges, the horseshoe-shaped configuration provides superior performance on uneven rock surfaces and fractured formations.

Technical Specifications

The cutting edge radius can be customized according to diameter requirements, typically set at 1/2 of the drill bit diameter (standard U-type configuration).

Rock Hardness Compatibility: Medium-hard to hard rock (f=8-14)
Optimal Applications: Fractured, jointed, and uneven rock formations

Primary Application Scenarios

Mining and Underground Engineering: Excavation of underground mine tunnels, small blasting holes, anchor bolt holes, and grouting holes - particularly effective for fractured ore bodies and surrounding rock
Tunnel Construction: Anchor bolt hole excavation for traffic tunnels, subway tunnels, and secondary lining applications, plus advanced geological exploration holes in jointed rock formations
Stone Processing and Quarrying: Extraction and block splitting of marble, granite, and limestone while preventing damage to stone edges
Geotechnical Engineering: Slope reinforcement, foundation pit support, anchor cable drilling, and geological exploration in fractured rock formations
