Non Explosive Split Wedge , Alloy Steel Air Rock Splitter With HRC 48-55 Hardness

Brand Name:	HLDRILL
MOQ:	10 PCS
Price:	Please contact us
Payment Terms:	T/T
Supply Ability:	3000 PCS Per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001

Product Name:

Alloy Steel Rock Splitter With Non-Explosive Splitting Wedges

Product Specifications:

Hardness HRC 48-55

Product Type:

Non-Explosive Rock Splitter

Material:

High-strength Alloy Steel

Core Parameters:

Hardness HRC 48-55, Wear-resistant And Impact-resistant

Applicable Scenarios:

Stone Quarrying, Rock Splitting In Mines, Concrete Demolition, Infrastructure Demolition

Performance Characteristics:

Non-explosive, Low Noise, Safe And Environmentally Friendly, High Splitting Force

Product Advantages:

Long Service Life, Safe Construction, High Efficiency, Low Cost

Packaging Details:

Wooden Box

Highlight:

Alloy Steel Air Rock Splitter

Non Explosive Split Wedge

HRC 48 Split Wedge

Product Description

Alloy Steel Rock Splitter - Non-Explosive Split Wedge with HRC 48-55 Hardness for Quarrying and Demolition

The G10 Air Pick Rock Splitter is a non-explosive rock breaking tool specifically engineered for use with pneumatic picks. This innovative system utilizes a wedge-and-rod assembly that harnesses the high-frequency impact of pneumatic equipment to efficiently split rock formations.

Working Principle

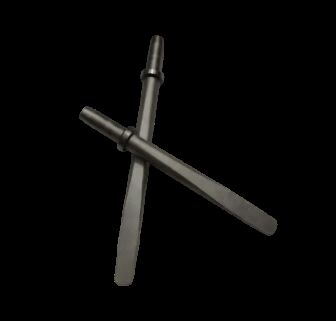

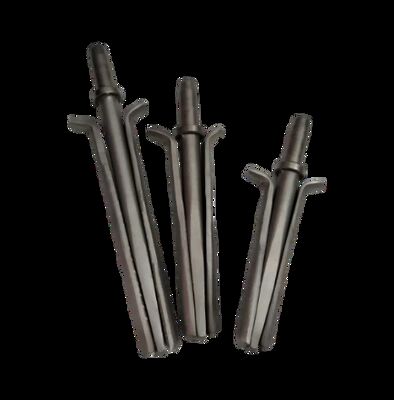

The system consists of one wedge-shaped central plug and two curved side plates (feathers). The central plug features a longitudinal groove, while the side plates fit precisely against the slanted surfaces. During operation, a circular hole is drilled using a rock drill, followed by insertion of the curved iron pieces. The wedge-shaped central rod is then positioned and driven deeper by the pneumatic pick's high-frequency impacts, causing the side plates to spread and apply lateral tension that cracks the rock along predetermined directions.

Material Specifications

All components are forged from high-strength alloy steel and undergo specialized heat treatment to achieve a hardness of HRC 48-55. This ensures exceptional impact resistance, wear durability, and a service life exceeding 500 uses.

Application Scenarios

Quarry Operations: Secondary shaping and cutting of large stone blocks to produce standardized slabs while minimizing material waste
Mining Applications: Secondary crushing of ore to enhance mining efficiency and improve ore quality
Building Demolition: Static demolition of concrete components, bridges, and pavements in existing structures while protecting surrounding infrastructure
Municipal Engineering: Concrete pavement crushing and rock excavation during pipeline installation and utility projects

This tool is particularly effective in situations requiring controlled working space, noise reduction, and precision rock breaking without explosive materials.

Available Specifications

Diameter × Length (mm)	Model
20 × 290	风镐劈石器
24 × 330
32 × 365
32 × 395
30 × 395
34 × 395
36 × 395
38 × 395
40 × 395
32 × 470
32 × 610
34 × 610
36 × 610
38 × 610
