Self Drilling Anchor Bolt , Anchor Plate With Integrated Drilling / Anchoring

Brand Name:	HLDRILL
MOQ:	10PCS
Price:	Please contact us
Payment Terms:	T/T
Supply Ability:	3000PCS Per Month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO9001

Product Name:

Self-Drilling Anchor Bolt Anchor Plate

Product Type:

Anchor Plate For Self-Drilling Anchoring Systems

Structural Features:

Integrated Drilling And Anchoring Design

Product Material:

High-strength Steel

Performance Characteristics:

High Construction Efficiency, Stable Stress, And Good Fit To Surrounding Rock

Surface Treatment:

Corrosion-resistant And Durable

Applicable Scenarios:

Tunnels, Mine Roadways, Slopes, And Foundation Pit Support Projects

Product Advantages:

Quick Installation, Strong Anchoring, And High Construction Efficiency

Packaging Details:

Wooden Box

Highlight:

Self Drilling Anchor Plate

Self Drilling Anchor Bolt

Integrated Drilling Anchor Plate

Product Description

Self-drilling anchor plate with integrated drilling and anchoring for high construction efficiency

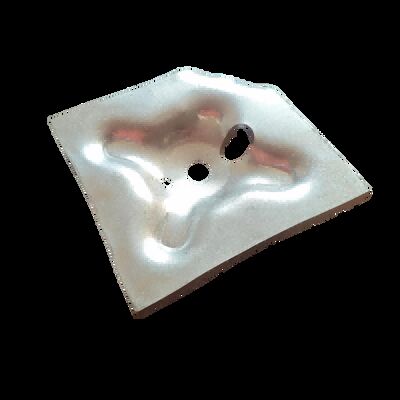

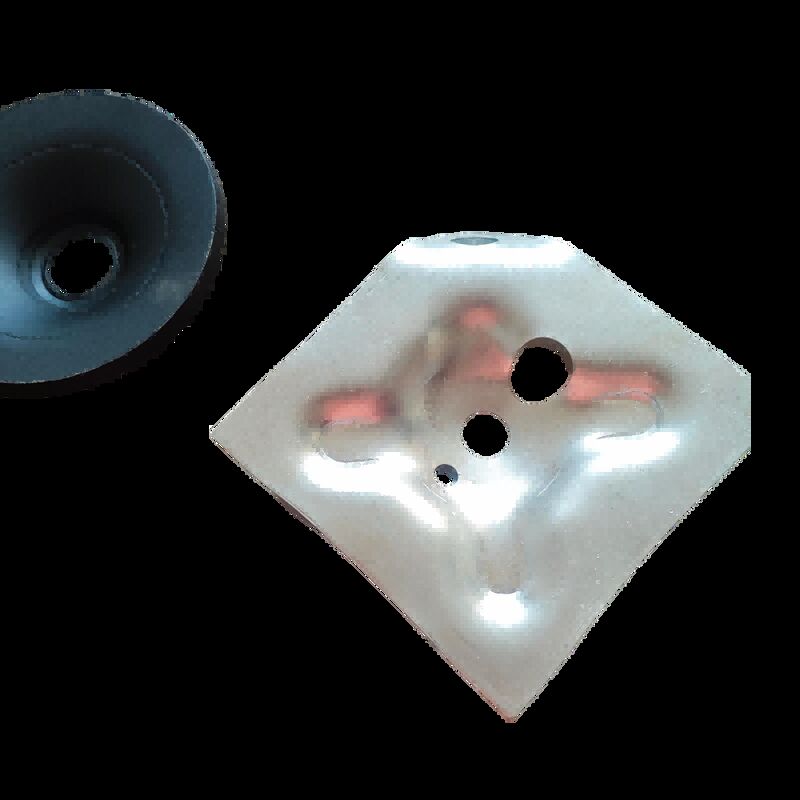

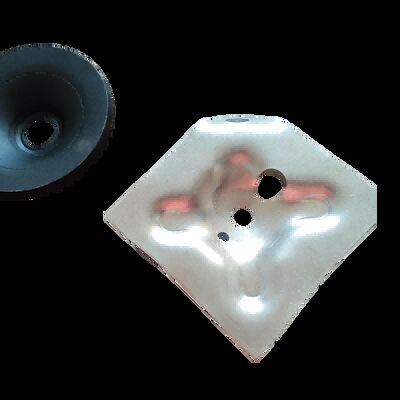

Self-drilling anchor plates are engineered anchoring components that integrate drilling, anchoring, and load transfer functions. Designed for use with self-drilling anchor rods and bolts, these plates efficiently transfer tensile or compressive forces from the anchoring system to the substrate, providing both installation convenience and structural stability.

Design & Functionality

Featuring square or irregular shapes with areas calculated based on anchoring load requirements, these plates distribute concentrated anchor loads across a larger contact surface. This design reduces local pressure and prevents substrate crushing. A precision slot accommodates self-drilling and self-tapping anchor bolts for secure locking.

Working Principle

Drilling Phase

The self-drilling anchor bolt, equipped with a cutting drill bit, connects to the anchor plate interface. Together they rotate and drill into the substrate, eliminating pre-drilling requirements and streamlining construction.

Anchoring Phase

After reaching the preset depth, the anchor bolt locks into the substrate through thread tightening or grouting solidification. The anchor plate maintains tight contact with the substrate surface, creating a reliable load-bearing support point.

Load Transfer Phase

When external loads (such as rock/soil lateral pressure or suspended object weight) are applied, the anchor plate distributes concentrated loads across its entire bearing surface before transferring them to the substrate, preventing excessive local stress and potential anchoring failure.

Applications

Ideal for geotechnical engineering projects including tunnel initial support, slope reinforcement, and foundation pit protection. Particularly suitable for complex geological conditions with drilling challenges, such as fractured rock formations and loose soil.

Core Advantages

High Construction Efficiency: Integrated drilling and anchoring eliminates traditional "drilling - hole cleaning - anchor plate installation" steps, reducing construction time by over 30% in complex geological conditions or confined spaces
Strong Anchoring Stability: Distributed load transfer design minimizes localized substrate damage risk through optimized bearing surface engineering
