| Brand Name: | HLDRILL |
| MOQ: | 10PCS |
| Price: | Detailed Discussion |
| Payment Terms: | T/T |
| Supply Ability: | 3000 per month |

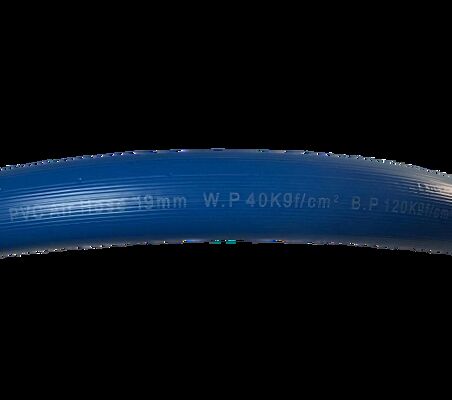

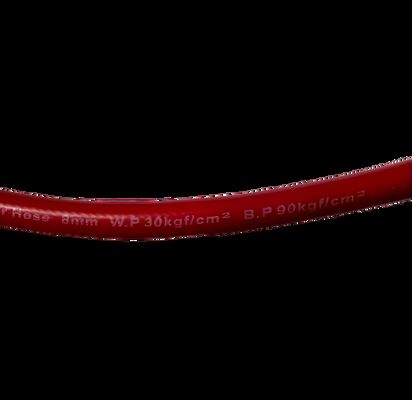

Our PVC Rock Drill Hose is designed for deep excavation operations in mines, hydroelectric projects, dam construction, and drilling applications in hilly and rocky terrains. Also known as Jackhammer Hose, it's suitable for spraying water, insecticides, paints, and other chemicals.

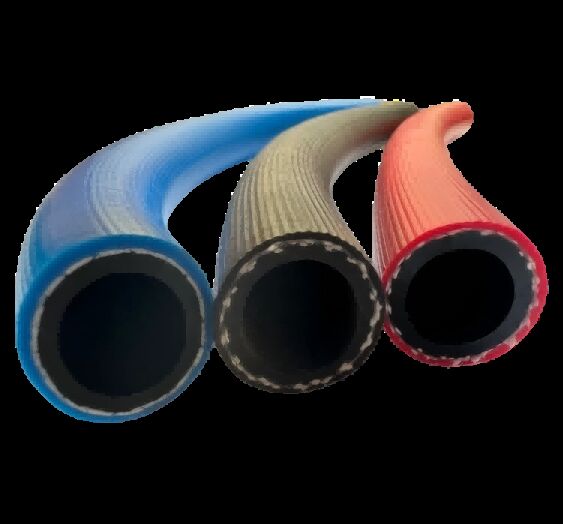

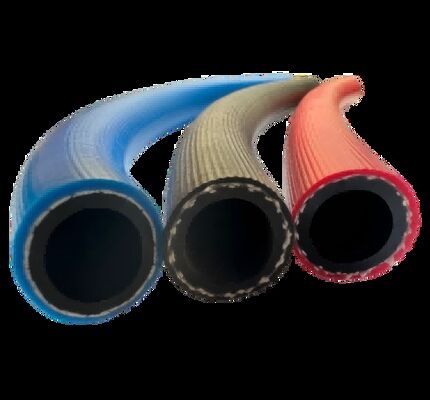

The hose features full synthetic yarn weaving between two thermoplastic layers, offering lightweight construction and cost-effectiveness compared to double-braided plastic/rubber hoses.
| Inside Diameter | Outside Diameter | Working Pressure | Burst Pressure | Length (Mtrs) |
|---|---|---|---|---|
| 1/4" (6.4mm) | 12mm | 20 bar | 60 bar | 50/100 |
| 5/16" (8mm) | 14mm | 20 bar | 60 bar | 50/100 |
| 3/8" (10mm) | 16mm | 20 bar | 60 bar | 50/100 |
| 1/2" (13mm) | 20mm | 20 bar | 60 bar | 50/100 |
| 5/8" (16mm) | 25mm | 20 bar | 60 bar | 50/100 |
| 3/4" (19mm) | 28mm | 20 bar | 60 bar | 50/100 |
| 1" (25mm) | 34mm | 20 bar | 60 bar | 50/100 |
