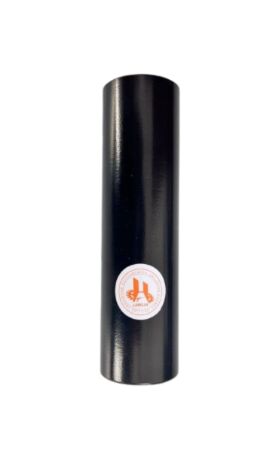

Universal Threaded Coupling Sleeve , Drill Pipe Coupling For Rock Drilling

Universal Threaded Coupling Sleeve , Drill Pipe Coupling For Rock Drilling

Brand Name:	HLDRILL
Model Number:	R32-190
MOQ:	10 PCS
Price:	Please contact us
Payment Terms:	T/T
Supply Ability:	2000 PCS Per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001

Product Type:

Connecting Sleeve / Connector Sleeve

Product Name:

Threaded Coupling Sleeve

Applicable Equipment:

Top Hammer Rock Drilling Rig, Hydraulic Rock Drilling Machine

Applicable Working Conditions:

Mining, Tunnel Excavation, Engineering Blasting Holes, Hard Rock Drilling

Application:

Used For Connecting Drill Pipes To Transmit Impact Energy And Torque

Thread Type:

General Standard Thread

Place Of Origin:

Liaocheng, Shandong, China

Connection Type:

Internal Threads At Both Ends, Rigid Butt Joint

Material:

High-strength Alloy Structural Steel

Packaging Details:

Wooden Box

Highlight:

Universal Threaded Coupling Sleeve

Threaded Drill Pipe Coupling

Rock Drilling Threaded Coupling Sleeve

Product Description

Universal Thread Adapter Coupling Sleeves for Rock Drilling

Coupling Sleeves: Essential Connectors for Rock Drilling Efficiency

Also known simply as "couplings," these critical components play a vital role in rock drilling systems. When pairing rock drills with male shank adapters and conventional drifter rods, a coupling is required to securely join the adapter to the rod—ensuring direct end-to-end contact for maximizing energy transmission during operation.

Beyond adapter-rod connections, couplings also link multiple drill rods together, maintaining consistent performance across extended drilling lengths. A key design feature is the built-in middle stop, which prevents over-threading onto the drill rod—protecting both the coupling and rod from damage while ensuring precise, reliable connections.

Our Coupling Sleeve Options for Percussive Tools

We specialize in manufacturing two primary types of coupling sleeves, engineered to meet diverse drilling demands:

Semi-Bridge Coupling Sleeves

Core Design: Features a small non-threaded bridge at the center, acting as a physical barrier to prevent steel from threading past this zone.
Precise Fit: The smaller-diameter end portions of the steel components fit together seamlessly within the coupling's central bridge area, ensuring stability.
Ideal For: High-torque machines, where robust resistance to rotational stress is critical.
Common Applications: Most rope-threaded and T-threaded couplings utilize this design, making them a versatile choice for demanding drilling environments.

Full-Bridge Coupling Sleeves

Anti-Creep Performance: Eliminates the risk of the coupling creeping along threaded joints, maintaining consistent alignment even under heavy use.
Surface Application Excellence: Typically preferred for surface drilling operations, where reliability and ease of handling are paramount.
Enhanced Usability: Offers superior uncoupling characteristics, maintains tighter joints over time, and reduces the chance of jamming—minimizing downtime.
Optimal For: Machines equipped with independent rotation systems, where precise control and durability are key.

Whether you need a coupling built for high torque, surface drilling, or seamless rod alignment, our semi-bridge and full-bridge designs are engineered to deliver efficiency, durability, and consistent performance in percussive tool applications.
