| Brand Name: | HLDRILL |
| Model Number: | HD712RP-T51-885mm |
| MOQ: | 10 PCS |
| Price: | Please contact us |
| Payment Terms: | T/T |
| Supply Ability: | 2000 PCS Per month |

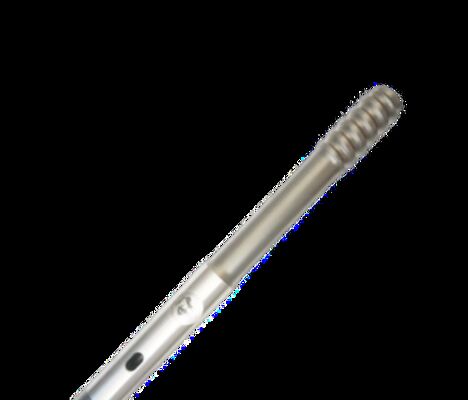

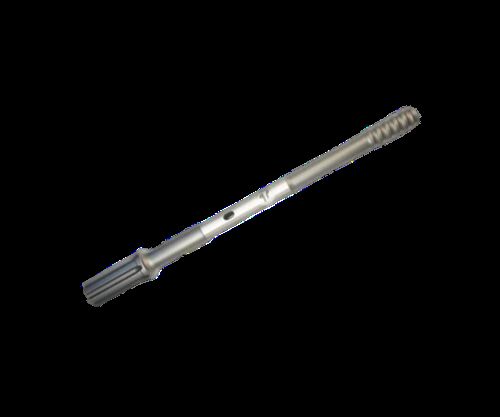

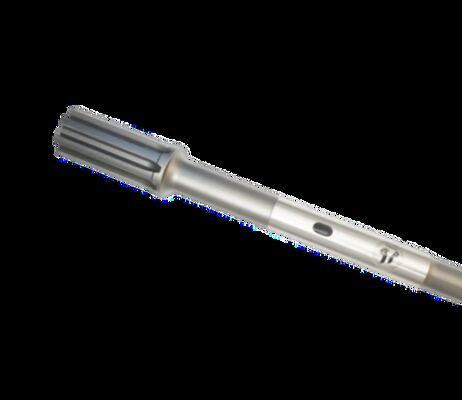

The Furukawa HD712RP series shank adapter is a critical component designed to connect rock drills with drill rods. This precision-engineered adapter efficiently transmits rotational torque, thrust force, impact energy, and flushing medium from the rock drill to the drill rod, ensuring optimal performance in demanding drilling applications.
Specifically, the Furukawa HD712RP-T51-885mm model features T51 thread type and measures 885mm in length. Manufactured from high-quality alloy steel using advanced CNC machining and heat treatment processes, this shank adapter delivers exceptional toughness and superior fatigue strength for extended service life.
| Model | Thread | Diameter (mm) | Length (mm) | Weight (Kg) | Flushing (mm) | HENGLONG Part Number |
|---|---|---|---|---|---|---|
| HD712RP | T38 (1½") | 51 | 787 | 11.6 | - | 4HD712RP-51T38-0787-23 |
| HD712RP | T45 (1¾") | 51 | 787 | 11.9 | - | 4HD712RP-51T45-0787-23 |
| HD712RP | T51 (2") | 51 | 787 | 12.5 | - | 4HD712RP-51T51-0787-23 |
| HD712RP | T45 (1¾") | 51 | 885 | 12.7 | - | 4HD712RP-51T45-0885-23 |
| HD712RP | T51 (2") | 51 | 885 | 13.4 | - | 4HD712RP-51T51-0885-23 |
